Seven Segment Display Lab 8

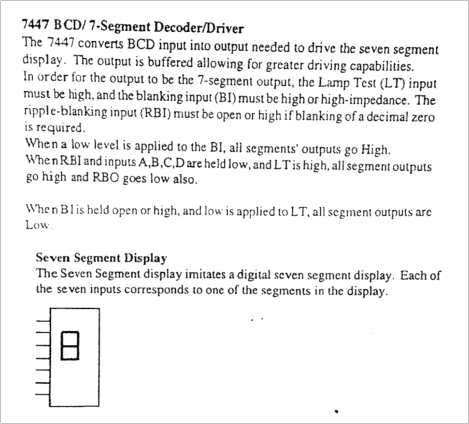

This lab will use the seven segment display (1372R) and the 7447 chip to create a display. The 7447 takes the BCD representation and displays the decimal value. It is required to use a 330 ohm resistor or the display will be ruined.

This lab will build one circuit that contains two parts

Prior to lab:

1.   Design circuits taking the 4-bit binary input and mapping them to a 7- segment display.  There should be 7 k-maps and 7 circuits designed.

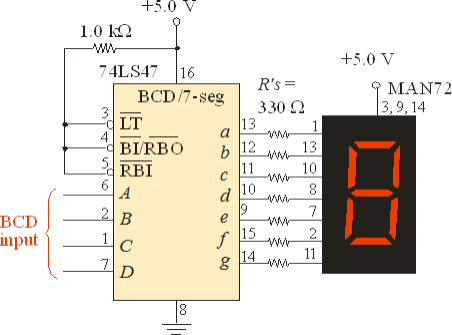

2.   Wire the complete circuit using the 7447 and the 7 segment display and verify the results.   Do not implement the circuits you designed in step 1. All of those circuits are implemented in the 7447 already.
