Assessment 3: Digital Drafting Portfolio

Submission date and time: 25 th October 2024, 11:59 pm

Weightage: 40%

Type: Individual

You are required to produce a 3D model and 2D drawings of a small house using Autodesk Revit 2022 (see Figure 1). This is a one-level building with one living room, one bedroom, and one toilet.

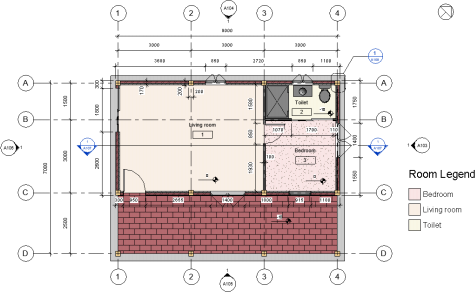

Figure 1 – Floor plan of the house to be modelled

To complete this assessment, you should follow the Revit tutorial videos uploaded on Stream from week 8 to 11. These videos provide step-by-step introductions to develop the model and drawings from scratch. In the end, your assignment submission should include:

1. One complete Revit file (named LastnameFirstname_studentID#_Assignment2.rvt)

2. One PDF file (named LastnameFirstname_studentID#_Assignment2.pdf) including seven drawings:

A101 Site Plan, A102 Floor Plan, A103 Elevation 1, A104 Elevation 2, A105 Sections, A106 Details and Schedules, A107 3D Views
