EEE 5305

Test 2, 12 December 2024, online test

Answer All Question

Figure 1 shows the structure of Linear Actuator with DC power supply. Discuss and design this motor using calculation of permeance method.  The material for permanent magnet is NdFeB (Neomax 38) and structure is SS400 (1.8 T). The coil diameter use for this motor is 0.5 mm.

1.  Explain how this Linear actuator works?                                              [2 marks]

2.  What is the fundamental equation for the thrust of this type of actuator?     [2 marks]

3.  Draw the flux flow inside the actuator.                                                  [2 marks]

4.  Draw the magnetic circuit for this actuator.                                          [2 marks]

5.  Calculate the coil turn and resistance for this actuator.                        [3 marks]

6.  Calculate the permeance and permanent magnet operating point.        [3 marks]

7.  Calculate the thrust for this motor if 3A and 5A of current were injected.         [3 marks]

8.  Calculate the best thicknesses for iron in point B.                                [3 marks]

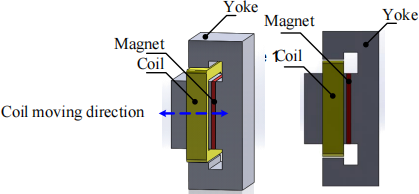

(a) Struktur penggerak / (a) Actuator structure

(b) Parameter penggerak (mm) / (b) The parameter of Actuator (mm)

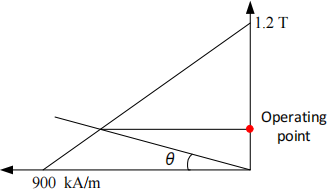

(c) Ciri bahan magnet kekal / (c) Permanent magnet material characteristic

Figure 1
