CTEC2905 Object Oriented Design

Exercise 6: Composition & Aggregation


Lab Objectives



•   Start to look at relationships between classes, that can be specified in UML

•   Understand how concepts of association, dependency  and delegation can provide a basis for modeling software systems

•   Design and implement classes associated by Composition and Aggregation , i.e. classes that encapsulate other objects


Associated Reading:

Tutorials that discuss associations,

https://www.protechtraining.com/bookshelf/java_fundamentals_tutorial/object_or

iented

https://personal.ntu.edu.sg/ehchua/programming/java/J3b_OOPInheritancePolym

orphism.html


Associating multiple classes

So far you have learnt how to design and implement your own  classes, as well  as reusing existing classes to achieve simple tasks in test programs. As you start to make more complex programs you will need to work with multiple classes that will encapsulate different features of your system.

It is common practice to combine the functionality of different classes through a relationship called association - meaning two classes are associated with each other. When one class uses another class internally there is said to be a dependency. A class may depend on another class if it simply uses it to assist with a single task, e.g. during a method call.

There are two other notable types of association: composition and aggregation. These are both stronger forms of dependency as a class will hold objects of another class as one of its instance variables (i.e. fields). The most important difference between composition and aggregation that you should appreciate is that the former involves storing a single object of another class, whereas the latter is relevant when storing a collection of objects of another class.

They are sometime called whole-part relationships. The distinguishing feature of a composition is that the lifetime of the parts is the same as the whole container, whereas the objects in an aggregation can exist outside of the containing object. Typically an aggregation is used when the whole maintains a collection of parts of the same type, i.e. a "has-many" relationship, whereas composition is appropriate where the whole has a fixed number of instances of a particular class as a part, i.e. a "has-a"  relationship (or "has-two", "has-three", etc).

From  a  class  design  point  of view,  there  is  little  difference  whether  an  association  is  a composition or an aggregation. The key aspect is the multiplicity, "has-a" or "has-many".



Two fundamental principles of object oriented systems are that of encapsulation and code reuse. Whenever  a  set  of data  or  methods  are  used  in  more  than  one  place,  you  should  try  to encapsulate it so you can reuse the code and isolate any changes you may need to make in the future. There is no point rewriting code to achieve a task that is already possible by reusing existing components - this is what associations are all about.

When classes use or store other objects they can often reuse methods belonging to those objects - this principle is called delegation.


Specifying the relationships

The main type ofrelationships between two class are:

Composition (building a whole from several different parts) “has-a”

Aggregation (a collection of objects of the same type) “has-many”

Dependency (uses another class) “uses”

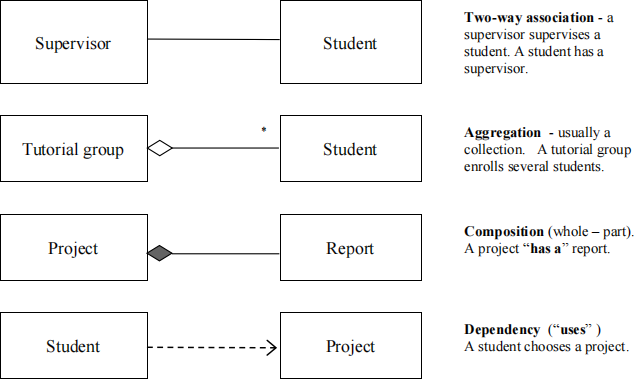

These relationships  can be  illustrated  in UML  class  diagrams.  An  association  is  shown by drawing a line between classes. The various arrow heads give the specific type of association.

The lines can also be annotated with multiplicities, relationships and roles.

Examples:



Sometimes the distinction between an aggregation and composition is not clear. The advice for now is not to worry too much about it. The relationship is still essentially an association. The distinguishing feature of a composition is that the lifetime of the parts is the same as the whole. E.g. a project report does not make sense without a project, whereas student exists independently of a tutorial group.


Composition

A class may have fields that are themselves objects. We say the object is composed of other objects. It is a “whole–part” relationship. This kind of relationship between classes may be shown in UML as a composition (i.e. a filled in diamond).

Technically speaking you have already implemented some classes that have utilized composition - classes you have built that have a field of type String. However, as String is such a commonly used type and already exists in the API, it is not generally specified in UML diagrams.


Question 6.1 Reopen your Eclipse workspace called  "CTEC2905_OO_Design" then

download the existing Java Project that can be extracted from the "Composition.zip" file, and imported into Eclipse. In Eclipse press Ctrl+F10 and select Package Presentation > Flat. In the lib.employee package you will find the Employee class that is composed of objects of type Name and Date, and also holds a salary.

You have already seen the Name class, but may wish to briefly look at the Date class, then take a more detailed look over the Employee class to see how the composition relationships have been formed. You should see similarities with the general structure of this class when compared with others you have developed, with the main difference being that the types are of Name and Date, instead of String or primitive types, that you have become used to working with.

You may have noticed that each class overrides the equals(...) method, and that the Employee implementation delegates to the equals method in the Name and Date classes to help test the equality of those instance variables, whilst using == for the primitive type salary field is suffice.

Study the code within the EmployeeDemo program in the main package to see the different way in which Employee objects can be constructed and used via the methods it offers.



Question 6.2 In the lib.dice package, study the PairOfDice class that is composed of

two Die objects. It implements the Rollable interface and therefore overrides the roll method by rolling both dice, and the getScore method by returning the sum of their scores. It achieves this through the principle of delegation - reusing the existing functionality ofthe Die class.

Take a look at the RollableDemo program - you will notice it is similar to the DieApp program from week 4, however, there are two variables of type Rollable, one assigned a PairOfDice, and another a Die. By using the interface type, we can interchange between these two classes.

Notes - Invoking multiple methods in a single statement:

Up until now you have generally been invoking a single method on a single object instance, e.g.

Name n = new Name("Joe", "Bloggs");

System.out.println(n.getFirstName());

As you start to create classes that are composed of other objects, you will find you may use the dot notation to invoke multiple methods in a single statement, e.g.

Employee emp = new Employee();

System.out.println(emp.getName().getFirstName());

emp.getName().setFirstName("Joe");

In the code above the getName() method returns a Name object reference and therefore any of the methods that belong to the Name class can be invoked on that.

There is no limit to the amount of methods that can be called in a single statement, take for example an ArrayList of type Employee:

ArrayList employees = new ArrayList(); employees.get(0).getStartDate().getSetDay(21);


Question 6.3 [Portfolio A.1] Download the existing Java Project that can

be extracted from the "StartingPlayer.zip" file, and imported into Eclipse. This question forms the first part of Portfolio case study A. Your task is to create a Player class that is composed of a Name and PairOfDice, and also has a gamer tag (represented by a String). You are advised to use the Employee class as a guide. In next week's exercise, you will update the Player class, and be given some unit tests for this updated version, allowing you to assess your progress.

a)   The Player should have three fields – in addition to those representing its Name and PairOfDice, the third field of type String stores a hypothetical gamertag – this can be thought of as a custom username for the player.

b)  The class should have a default constructor, which assigns default values to each field, and two custom constructors  - one that accepts a Name object  and a gamertag (and assigns a default value for the PairOfDice), and another that accepts values for all three fields.

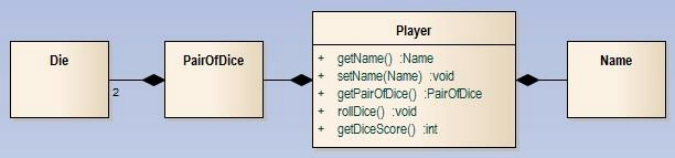

c)  As shown in the UML diagram, there should be get and set method for its Name and a get method for PairOfDice. It should also have a method called rollDice and getDiceScore that both simply delegate to the PairOfDice class, which already has this functionality.

d)  The class should also have a get and set method for the String-based gamertag, and a


toString() method in the standard convention format.

e)  As this is a portfolio question, you should fully document the Player class with Javadoc, i.e. class header, constructor/method description and tags where appropriate.


Notes - The principle of delegation:

You have already seen how the PairOfDice class delegated to the Die class to roll both its dice and calculate their combined score - this is common practice when working with associations.

When an aggregation relationship exists, the aggregate class (i.e. that which holds a collection) can take advantage of delegation by delegating responsibility to the internal data structure.

For example the ArrayList class already has an add(...) method, so a PlayList class can simply delegate this task when adding a song to the internal list:

public void addSong(Song s) {

songlist.add(s);

}

You may wonder why you would build a class, where you are primarily delegating responsibility to another class. The benefit is you have created something new (in this case a PlayList), which only provides selected necessary functionality of an ArrayList and can additionally add functionality of its own.



Aggregation

These  exercises  will  help  to  familiarise  you  with  aggregation  relationships  where  a  class primarily  acts  as  a  container to hold  a  collection  of other  objects.  Whilst there  are  lots  of collection classes that represent different data structures, you have so far only been introduced to the ArrayList and so this will be the collection of choice and form one of your fields.


Question 6.4 Download  the  existing  Java  Project  that  can  be  extracted  from  the

"Aggregation.zip" file, and imported into Eclipse. Inside the lib.playlist package, the PlayList class aggregates Song objects. The Song class is similar to the CDTrack from week 3.

Study the code and comments in PlayList, noting how it holds a collection of Song objects and specifies common methods of an aggregate class, that delegate to the internal data structure, such as add, remove, get, size, etc. There are other methods providing additional functionality, some of which show different implementations (including updated Java 8 stream-based approaches). In the PlayListApp program (in the main package), look at how a PlayList is created and used.

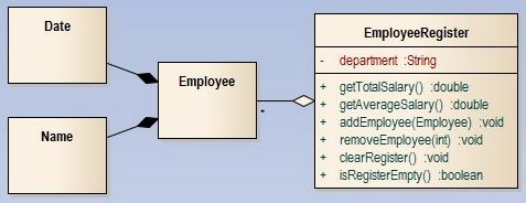

Question 6.5 Study the following UML  specification and  see how you can  create  a

system  that   combines  multiple   classes   and   displays  both  composition   and   aggregation relationships. Inside the lib.employeeRegister package, look at the EmployeeRegister class, that aggregates Employee objects.
