HW3: Basics of "dplyr" and "ggplot2"

Stat 33B, Fall 2021



Introduction

In this assignment, you will work with another approach to manipulate tables and create statistical graphics. You are going to use the functionality of the tidyverse packages:

•  "dplyr" to work with tabular data in a more syntactic way.

•  "ggplot2" to create graphics in a more consistent and visually pleasing way


library(tidyverse)




General Instructions

• Write your narrative and code in an Rmd (R markdown) file.

•  Name this file as hw3-first-last.Rmd, where first and last are your first and last names (e.g. hw3-gaston-sanchez.Rmd).

• Please do not use code chunk options such as: echo  =  FALSE, eval  =  FALSE, results =  'hide '. All chunks must be visible and evaluated.







NBA Players Data

The data file for this HW is nba2018-players.csv, which comes in the same directory containing this Rmd (see bCourses).

Download a copy of the CSV file and place it in the same working directory where you have this Rmd.

To import the data in R you can use the base function read.csv(), or you can also use read_csv() from the package "readr".



1) Filtering, slicing, and selecting

a) Use slice() to subset the data by selecting the first 5 rows. Do the same thing with slice_head()


#  your  code


b) Use slice() to subset the data by selecting rows 10, 15, 20, . . . , 50.  The function seq() is your friend.


#  your  code


c) Use filter() to subset those players with height less than 70 inches tall.


#  your  code


d) Use filter() to subset rows of Golden State Warriors ( 'GSW') that play in center ( 'C') position.


#  your  code


e) Use filter() and then select(), to subset rows of lakers ( 'LAL'), and then display their names.


#  your  code


f) Find out how to select the name, age, and team, of players with more than 10 years of experience, making 15 million dollars or more.


#  your  code


g) Find out how to select the name, team, height, and weight, of rookie players, 20 years old, displaying only the first five occurrences (i.e. rows)


#  your  code






2) Adding new variables, and reordering rows

a) Use the original data frame to filter() and arrange() those players with height less than 71 inches tall, in increasing order (based on height values).


#  your  code


b) Use the original data frame dat to display the name, team, and salary, of the top-5 highest paid players


#  your  code


c) Create a data frame gsw_mpg of GSW players, that contains variables for player name, experience, and min_per_game (minutes per game), sorted by min_per_game (in de- scending order). And display gsw_mpg


#  your  code





3) Summaries and Grouped Operations

a) use summarise() to get the largest height value.


#  your  code


b) use summarise() to get the standard deviation of points3.


#  your  code


c) use summarise() and group_by() to display the median of three-points, by team.


#  your  code


d) display the average triple points by team, in ascending order, of the bottom-5 teams (worst 3pointer teams)


#  your  code


e) obtain the mean and standard deviation of age, for Power Forwards, with 5 and 10 years of experience (including 5 and 10).


#  your  code






4) Graphics with "ggplot2"

a) Create a data frame gsw by subsetting the data for Golden State Warrior players, and find out to make a scatterplot of height and weight, using geom_text() to display the names of the players.


#  your  code


b) Get a density plot of salary (for all NBA players).


#  your  code


c) Get a histogram of points2 with binwidth of 50 (for all NBA players).


#  your  code


d) Get a barchart of the position frequencies (for all NBA players).


#  your  code


e) Make a scatterplot of experience and salary of all Centers, and use geom_smooth() to add a regression line.


#  your  code






5) Faceting

One of the most attractive features of "ggplot2" is the ability to display multiple facets. The idea of facets is to divide a plot into subplots based on the values of one or more categorical (or discrete) variables.

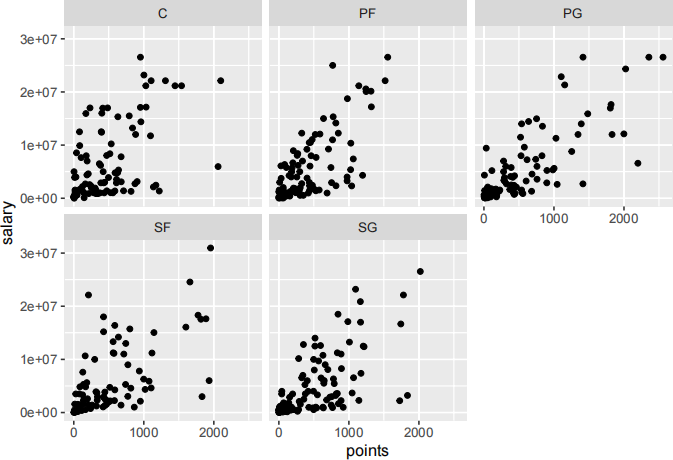

Here’s an example. What if you want to get scatterplots of points and salary separated (or grouped) by position? This is where faceting comes handy, and you can use facet_wrap() for this purpose:


#  scatterplot  by  position

ggplot(data  =  dat,  aes (x  =  points,  y  =  salary))  +

geom_point()  +

facet_wrap(~ position)

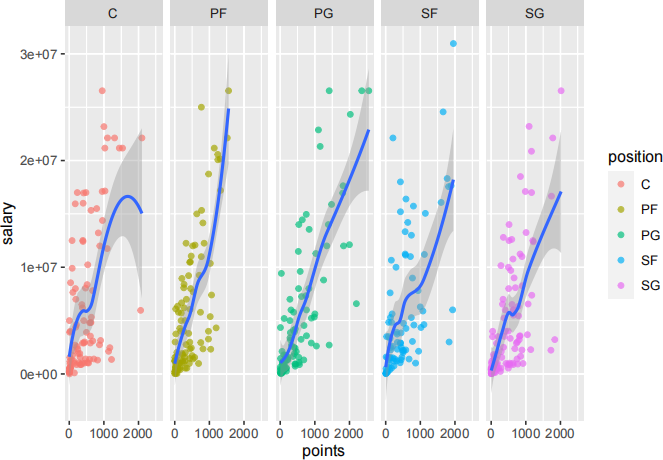

The other faceting function is facet_grid(), which allows you to control the layout of the facets (by rows, by columns, etc)


#  scatterplot  by  position

ggplot(data  =  dat,  aes (x  = points,  y  =  salary))  +

geom_point(aes (color  = position),  alpha  =  0.7)  +

facet_grid(~ position)  +

geom_smooth(method  =  loess)


##  `geom_smooth()` using formula  'y  ~ x '

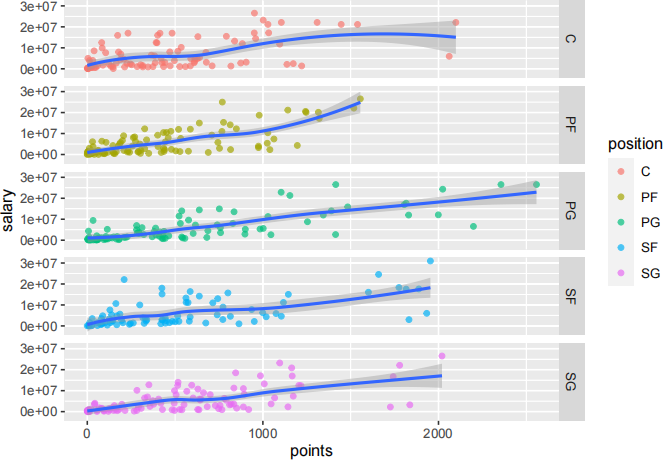

#  scatterplot  by  position

ggplot(data  =  dat,  aes (x  = points,  y  =  salary))  +

geom_point(aes (color  = position),  alpha  =  0.7)  +

facet_grid(position  ~  .)  +

geom_smooth(method  =  loess)


##  `geom_smooth()` using formula  'y  ~ x '


5.1) More plots

a) Make scatterplots of experience and salary faceting by position


#  your  code


b) Make scatterplots of experience and salary faceting by team


#  your  code


c) Make density plots of age faceting by team


#  your  code


d) Make scatterplots of height and weight faceting by position


#  your  code


e) Make   a   scatterplot   of   experience   and   salary   for  the  Warriors,   but  this time  add  a  theme  layer—e.g.  theme_bw(),   theme_minimal(),   theme_dark(), theme_classic()—to get a simpler background


#  your  code
