Your program should print a message indicating how to run the program if no record file is passed in as a command line argument. Otherwise, it can display a table showing the number of days the books have been borrowed by the members of the library, and two sentences showing the total number of books and members, and the average number of days the books have been borrowed. In the table, if a book is not borrowed or reserved by a member, then the data field at that location has an ‘xx ’ symbol. On the other hand, if the book has been reserved by a member, the data field at that location is shown as a double dash (--). Also, the data in the columns in the table are aligned, in particular, the member IDs are aligned to the left whilst the records (the number of borrowing days) are aligned to the right.

The printed messages corresponding to two scenarios need to be exactly as below:

1.   This is when no record file is passed in as a command line argument.

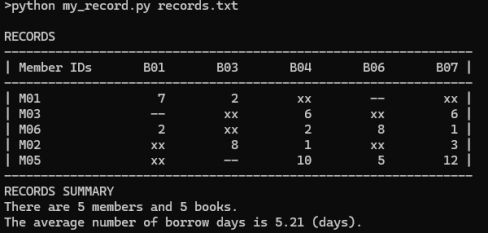

2.   This is when a record file is passed in as command line arguments. Note that users can specify a

different filename, not necessarily the name records.txt.

----------------------- CREDIT LEVEL (3 marks, you must only attempt this level after completing the PASS level -------------------------

At this level, your program can support more information about books. Now, apart from the ID, each book will have a name, type, the number of copies in the library, the maximum number of days it can be borrowed free of charge, and the late charge per each day if it is borrowed more than the maximum free days. All IDs, names, the number of copies, the maximum number of borrowing days, and the late charge can be modified. There are two types of books: Textbook and Fiction. All textbooks have the same maximum borrowing days, which is  14  days  by  default.  The  fiction  books have  different maximum borrowing days, but always be larger than 14 days. When reading the book file, if this requirement is violated for any book, then the program should terminate, and it should also display the message indicating the issue and the corresponding book. You should define appropriate variables, getters, and setters for books.

A book should have a method to compute some useful statistics, e.g., the number of borrowing members, the number of reservations, the range of borrowing days by the members (it is your choice to define the necessary statistics to compute). You can define extra methods if necessary.

At this level, the book file will have more information of the books, includes the book IDs, names, types, the number of copies in the library, the maximum number of borrowing days, and the late charge. You can assume there are no duplicate or redundant books. You can assume all the books available in this file are also available in the record file (in the PASS level), and viceversa.

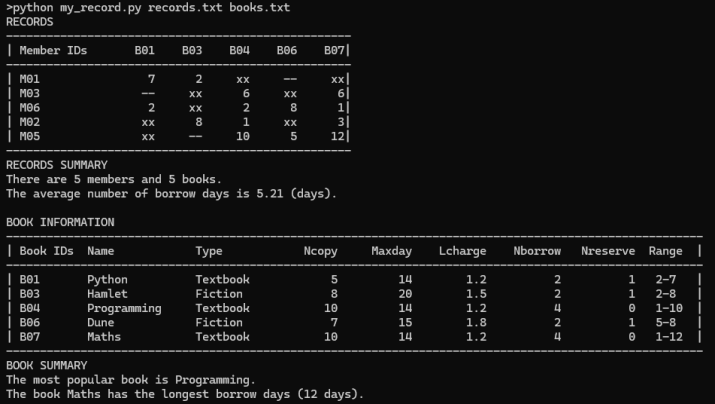

At this level, your program can now print the book information table on screen and save the book information into a filename reports.txt. For example, given the above record file (in the PASS level) and the book file (in this level), the book information table should look like below. Note the content within the reports.txt file should also look the same.

In this level, users can pass two file names via the command line arguments: the record file and the book file. The program will then display two tables: the record table from the PASS level, and the book information table from this level.

Note users can specify different file names, not necessarily the names records.txt, and books.txt. The first file is always the record file, and the second file is the book file.

In the Book information table, the Book IDs column shows the IDs of the books, the Name column shows the book names, the Type column shows the types of the books (Textbook for textbooks, and Fiction for fictions), the Ncopy column shows the number of copies of the books in the library, the Maxday column shows the maximum number of days the books can be borrowed free of charge, and the Lcharge shows the charge per day once a book is borrowed more than the maximum free days. The Nborrow column shows the number of members borrowing the books. The Nreserve column shows the number of members reserving the books. The Range column shows the minimum and maximum number of days the books have been borrowed by the members.

Apart from this table, your program should also display two sentences. The first sentence indicates the most popular book, i.e., the books with the greatest number of members borrowing and reserving. If there are multiple books with the same number borrowing and reserving members, you can choose either to display one or all books. The second sentence indicates the book with the longest days borrowed by the members. Similarly, if there are multiple books with the same highest borrowing days, you can choose to display one or all books.

Finally,  it’s  worth  emphasizing  that  with  the  program  developed  in  this  level,  the  behavior  of command-line arguments is still kept as in the PASS level. Specifically, when the user does not pass any command-line argument, the program will display the usage message, and when the user passes in a record filename, the program will display the record table. Based on this level, when the user passes in a record filename and a book filename, the program will display the record and book tables.

--------------- DI LEVEL (3 marks, you must only attempt this level after completing the CREDIT level) ---------------

At this level, your program can support two types of members: Standard and Premium. The standard members can only borrow or reserve 1 textbook and 2 fictions at one time. The premium members can borrow or reserve 2 textbooks and 3 fictions at one time.

A member should have a method to compute some useful statistics for the member, e.g., the number of textbooks they are borrowing or reserving, the number of fictions they are borrowing or reserving, and the average number of days they have borrowed books (it is your choice to define the necessary statistics to compute). It should also have a method to check if a member satisfies the aforementioned requirement regarding the number of maximum textbooks and fictions one can be borrowed at one time. You can define extra methods for the members if necessary.

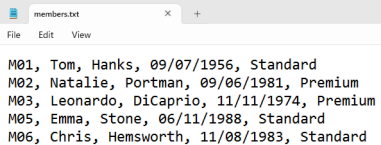

At this level, the member file will have more information. The file includes the member first names, last names, the day of birth, and the member types. You can assume there are no duplicate or redundant rows. You can assume all members in the record file (in the PASS level) appeared in this file and vice versa. An example of the member file is as follows.

At this level,users can pass three filenames via the command line arguments: the record file, the book file, and the member file. The program will then display three tables: the record table from the PASS level, the book table from the CREDIT level, and the member table from the DI level. All these tables will also be stored in the text file reports.txt (from the CREDIT level).

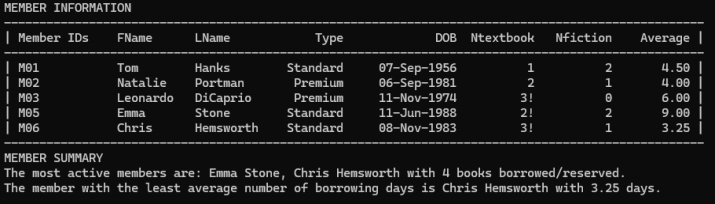

Given the above record file (in the PASS level), the book file (in the CREDIT level), and the member file (in this level), the record and book tables look the same as in the previous levels whilst the member information table should look like below. Note the content within the reports.txt file should also look the same. Also, in the command line, users can specify different filenames, not necessarily the names records.txt, books.txt, members.txt. The first file is always the record file, the second file is the book file, and the last file is the member file.

In the member table, the FName column shows the members’ first names, the LName column shows the members’ last names, the Type column shows the types of the members, the DOB column shows the days of birth  of the members, The Ntextbook column shows the number of textbooks being borrowed/reserved. The Nfiction column shows the number of fictions being borrowed/reserved by the members. The Average column shows the average number of borrowing days of the members.

In the member table, the data in the FName and LName columns are aligned to the left whilst the data in all other columns are aligned to the right. The data in the DOB column needs to be in the format dd- mmm-yyyy as in the table. The Average column always displays the values with 2 digits after the decimal points. Besides, in the table, if a member doesn’t satisfy the requirement of the maximum number of textbooks and fictions, and exclamation mark (!) will be added to either the Ntextbook or Nfiction column. For example, in the table above, the members M05 has an exclamation mark in the Ntextbook column because they currently have borrowed/reserved 2 textbooks while for standard members,the maximum number of textbooks to be borrowed/reserved is only 1.

Apart from the member information table, two additional sentences are required. The first sentence indicates the most active member (the member with the highest number of borrowing/reserving books) along with the number of borrowing/reserving books. If there are multiple members with the highest number of borrowing/reserving books, you can choose to display one or all these members. The second sentence indicates the member with the least average number of borrowing days. Similarly, if there are multiple members with the least average number of borrowing days, you can choose to display one or all these members.

Finally,  it’s  worth  emphasizing  that  with  the  program  developed  in  this  level,  the  behavior  of command-line arguments is still kept as in the PASS and CREDIT levels. Specifically, when the user does not pass any command-line argument, the program will display the usage message. When the user passes in a record filename, the program will display the record table. When the user passes in a record filename and a book filename, the program will display the record and book tables. Based on this level, when the user passes in a record filename, a book filename, and a member filename, the program will display the records, book, and member tables.

-------------- HD LEVEL (6 marks, you must only attempt this level after completing the DI level) ---------------

At this level, your program can handle some variations in the files using built-in/custom exceptions:

You are not allowed to use Artificial Intelligence tools (e.g., ChatGPT or Copilot) to help you when developing your code. If this is detected by our plagiarism checker, a plagiarism/misconduct case will be open for you, and you will be reported to the RMIT Misconduct team who will then handle your plagiarism/misconduct case.

Your code needs to be formatted consistently. You must not include any unused/irrelevant code (even inside the comments). What you submitted must be considered the final product.

You should design your classes carefully. You may use a class diagram to assist with the design. In the DI and HD levels, you are required to provide a detailed class diagram to show your class design. An example of a class diagram is shown below – Figure 1 (note that this is a class diagram of a different programming assignment). In the diagram, the variables and methods of each class are shown. Note that if your code is at the PASS or CREDIT level, you do not need to submit any diagram; a diagram at these levels would NOT result in any mark.

You could use tools like PowerPoint, Keynotes, or online tools like moqups.com to draw the diagram. The diagram needs to be submitted in jpg, gif, png, or pdf format.

Finally, note that in places where this specification may not tell you how exactly you should implement a certain feature, you need to use your judgment to choose and apply the most appropriate concepts from our course materials. You should follow answers given by your "client" (or "supervisor" or the teaching team) under Canvas/Discussions/Discussion on Final Coding Challenge.

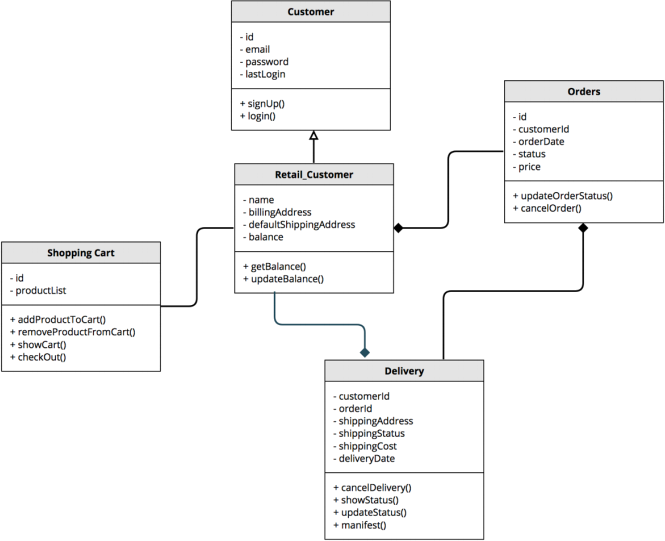

Figure 1. An example of a class diagram

C - Documentation Requirements:

You are required to write comments (documentation) as a part of your code. Writing documentation is a good habit in professional programming. It is particularly useful if the documentation is next to the code segment that it refers to. NOTE that you don't need to write an essay, i.e., you should keep the documentation succinct.

Your comments (documentation) should be in the same Python file. Please DO NOT write a separate file for comments (documentation).

At the beginning of your Python file, your code must contain the following information:

1.   Your name and student ID.

2.    The highest level you have attempted. This means you have completed all the requirements of the levels below. Mark will be only given at the lowest level of partial completion. For example, if you completed the PASS level, tried 50% of the CREDIT level, 30% of the DI level, 10% of the HD level, then your submission will be marked at the CREDIT level only (we will ignore the DI and HD levels, so please make sure you fully finish one level before moving to the next one).

3.   Any problems of your code and requirements that you have not met. For example, scenarios that might cause the program to crash or behave abnormally, the requirements your program does not satisfy. Note that you do not need to handle or address errors that are not covered in the course.

Besides, the comments in this final coding challenge should serve the following purposes:

•   Explain your code in a precise but succinct manner. It should include a brief analysis of your approaches instead of simply translating the Python code to English. For example, you can comment on why you introduce a particular function/method, why you choose to use a while loop instead of other loops, why you choose a particular data type to store the data information. These comments can be placed before the code blocks (e.g., functions/methods, loops, if) and important variable declarations that the comments refer to.

•   Document some analysis/reflection as a part of your code. Here, you need to write some paragraphs (could be placed at the end or at the beginning of your code) to explain in detail your design process, e.g., how you came up with the design of the program, how you started writing the code after the design process, the challenges you met during the code development.

•   Document the references, i.e., any sources of information (e.g., websites) you used other than the course contents directly under Canvas/Modules, you must give acknowledgement of the sources, explaining how you use the sources in this assignment. More detailed information regarding the references can be found in Section 5.

D - Rubric:

Overall:

More details of the rubric of this assessment can be found on Canvas (here). Students are required to look at the rubric to understand how the assessment will be graded.
