CS24011: Lab 2: Reversi


In this exercise, you will write a Java program to play the game of reversi, sometimes known by its trademark name of Othello. Reversi is played on an 8 by 8 board, initially set up as shown in figure 1, with the players moving alternately by placing their own pieces (black or white) on the board, one at a time. Black always goes first.

Figure 1: The opening position in a reversi game; black to move.

        In the following description, a line segment is a sequence of board squares forming a contiguous straight line (horizontal, vertical or diagonal). The rule for a player to place a piece is:

● The piece must be placed on an empty square such that there is a line segment passing through the piece played, then through one or more pieces of the opposing colour, and ending on a piece of the player’s own colour.

When such a line segment exists, we say that the opponent’s pieces on that line segment are bracketed. When a piece is played, bracketed pieces change colour according to the following rule:

● For every a line segment passing through the piece played, then through one or more pieces of the opposing colour, and ending on a piece of the player’s own colour, the pieces of opposing colour through which that line segment passes are all changed to pieces of the player’s own colour.

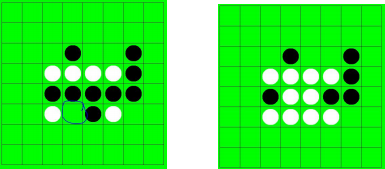

In Fig. 2, the left-hand picture shows a possible move for white, which brackets three of his opponent’s pieces, resulting in the position shown in the right-hand picture.

        If, and only if, a player cannot move, but his opponent can, he misses a turn. The game ends when neither player can move. (This usually, but not always, happens because all the squares have been occupied.) The winner is the player with the greater number of pieces of his own colour on the board; if there is no such player, the result is a draw.

Figure 2: A move by white in a reversi game, and its result.

        To complete this lab, unzip the file reversiUGpack.zip, which is available in the reversiLab branch of the GitLab repo Comp24011_2021-22-your username, which should exist in your gitlab account. The unpacked directory contains a Java program to play a game of reversi. To compile the code, use javac Othello.java. The subsequent call java Othello will invoke a simple program that allows a human player (always black) to play against the computer (always white). The provided graphical interface is rather basic, to put it mildly: clicking on squares which do not represent legal moves just produces an irritating beep; if it is your go, but you have no legal move, then you must click anywhere on the board to allow play to pass to the computer; if you want to play another game, you need to close the window and re-run the program. Also, it’s better not to click while the computer is ‘thinking’. Finally, as a special irritation, if the game ends with the computer’s move, then you have to click on the board to see the result. Try it out, and play a few games. You will see that the computer plays terribly. In fact, it computes the possible moves in the current position, but just selects the first one! Your task is to modify the program so that it uses minimax search with alpha-beta pruning to play a better game.

        The main game logic is in the class BoardState. An instance of this class rep-resents a situation in the game. The field colour encodes whose turn it is (1 for white; -1 for black), while the low-level methods int getContents(int x, int y) and void setContents(int x, int y, int piece) allow retrieval and set-ting on the invididual board squares. Here, a value of 1, -1 or 0 represents pres-ence of, respectively, a white piece, a black piece or no piece at all at the square on rank x and file y. To make things easier for you, we have included the method boolean checkLegalMove(int x, int y), which checks whether it is possible for the current player to move on square (x,y), and void makeLegalMove(int x, int y), which actually executes the move. In fact, to make things really easy, we have provided a method to return the list of all and only those legal moves for the current player. Here, we rely on a class Move to encode the actual moves; it has just two public fields, x and y; so that instances of this class rep-resent moves (legal or illegal) in the obvious way. The method for retrieving the list of legal moves for the current player is ArrayList<Move> getLegalMoves(). (Make sure you understand generic types in Java!). Notice that this list may be empty, because the current player may be unable to make a move.

        The computer player is located in the class MoveChooser.java, of which the main program creates an instance. The only thing that this class does is implement the static method Move chooseMove(BoardState boardState). This is the method called when it’s the computer’s turn to move in the board state boardState. In its current version, this method just gets the legal moves and returns either null if that list is empty (remember what I said about there sometimes being no legal moves), and the first move in that list otherwise. The rest of the control is handled by the program. All you have to do is write a better move selection function than just picking the first. In fact, you must use minimax with αβ-pruning. The depth of the search should simply be controlled by the static final int searchDepth, which is currently set to 6 at the start of the Othello class. You may wish to set it to a lower value to speed up development. When you get everything working, try setting the search depth 8. This should be enough to thrash most human players, and won’t be too slow.

        You will require a static evaluation function. We suggest you proceed as follows. Each square in the playing area is assigned a number:

These numbers reflect the value for a player of being on the respective square. Note that the squares on the edges have high value (since pieces here are hard to take) and squares in the corners have an even higher value (since pieces here cannot be taken). By contrast, neighbouring squares have negative values, since a piece here will allow one’s opponent to move onto a high- value square. The value of a board position can then be defined by adding up the weights of all those squares occupied by white pieces and subtracting the weights of those squares occupied by black pieces. Thus, the value is always counted from white’s point of view. (Incidentally, the above array of values was taken from an older textbook by Peter Norvig).

        You will also have to write a program to calculate minimax values of board positions. If you find αβ-pruning hard, you may prefer first to try ordinary mini-max, and then graduate to αβ-pruning once that’s working. It is worth thinking a bit about what you will need to do when searching through a tree of board positions. Remember that instances of BoardState are Java objects. When you call BoardState.makeLegalMove(x, y), that will update the board (and the current player). If you want to get the daughters of a vertex boardState in the search tree, therefore, you will need to create, for each legal move, a fresh copy of boardState, and then execute the move in question on that copy. The method Boardstate.deepCopy(), which we have provided in BoardState is a cloning method, so that a call boardstate1= boardstate.deepCopy() sets boardState1 to be a fresh copy of boardstate; subsequently modifying boardstate1 (e.g. by executing a legal move) does not then change boardstate. When computing the daughters of a vertex in the game tree, be careful about two corner cases: one is where the computer has no legal move. In that case, control passes to the other player. In terms of the search tree, this means that the vertex representing the board state in question has a single daughter, with all the pieces the same, but the current player changed.

        The top-level call is a little different to subsequent calls, because you have to select the move that yields the best daughter (from the point of view of the computer player), rather than simply evaluating the daughter. It is important that, when and only when there are no moves available, you return the move null. This is fine: our code will understand what that means.

        Try the program Othello.java out with your version of MoveChooser.java, and with the constant Othello.searchDepth set to the value 6. The resulting program should play a decent game of Othello against a human, and should certainly beat a player choosing moves more or less at random. Moreover, the program should not take more than about a few seconds for any move when run on an ordinary PC at that search depth; if so, you have probably written inefficient code.

        Simply upload your files with the to the branch of the gitlab project from which you pulled the zip file. One of these files will be your re-witten version of MoveChooser.java; you may include other .java files (for example, containing subsidiary classes). However, you may not include any files with other extensions than .java; nor may you modify the files provided in the exercise (with the exception of MoveChooser.java, of course). Any such files or changes to existing files will be ignored. Important: do not zip your solutions. You will need tag your commits with

git tag 24011-lab2-S-Games

You will most likely have done this for other courses as well. But instructions can be found here:

https://wiki.cs.manchester.ac.uk/index.php/UGHandbook20:

Coursework#Developing_and_submitting_with_Gitlab

The lab will be marked offline. The marker will visually inspect your code, and also run it against various automated players. The deadline for submission is 18:00 on Friday, 5th November.

        The marking scheme is as follows:

1. Writing a static evaluation function: 4 marks.

2. Implementing minimax with αβ-pruning: 8 marks.

3. Comparable performance in terms of speed and quality with the model solution: 4 marks.

4. Clear, commented code in good style: 4 marks.

        Code which does not compile, or which produces such runtime errors under ordinary game conditions that it cannot be evaluated will be inspected visually, but cannot be expected to receive more than 4 marks.
