Lab 7: Cache Design in PyRTL

Assigned: Wednesday, February 21st, 2024

Due: Wednesday, February 28th, 2024

Points: 100

• MAY ONLY BE TURNED IN ON GRADESCOPE as PYTHON files (see below for details).

• There is NO MAKEUP for missed assignments.

• We strictly enforce the LATE POLICY for all assignments (see syllabus).

Goals for This Lab

By completing this lab, you should be able to utilize PyRTL to design and simulate a 4-way set-associative cache that follows a round-robin replacement policy.

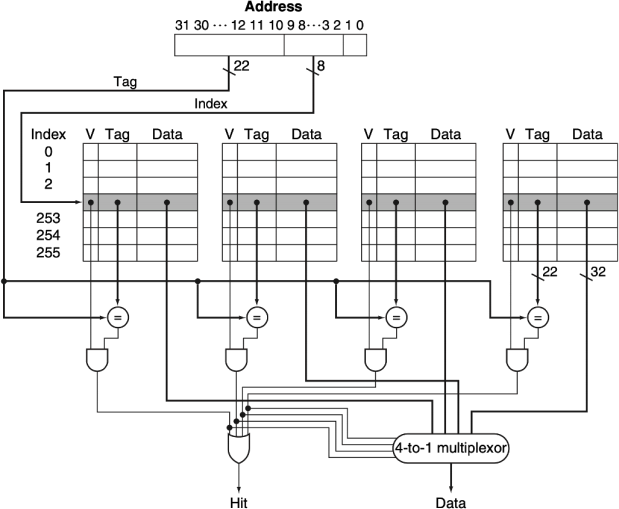

Figure 1: Textbook figure 5.18 of a set-associative cache. Note that this has different parameters than your cache for this lab.

Task

Your PyRTL code for this lab will implement a 4-way, set-associative cache that supports 32-bit addresses and is word addressable. Your cache should be 16 rows. Because this is a 4-way cache, there are 4 cache blocks in each row. Each data block has 4 words (16 bytes  total). Provided with several MemBlocks for these components, your task is to implement the rest of the logic for a 4-way cache. Your cache should follow a round-robin replacement policy when inserting entries into the cache (explained later).

Provided Files

We have provided the skeleton file ucsbcs154lab7_4waycache.py, where you will need to implement your cache.

Your cache will have 4 inputs and 2 outputs. The names and bit widths must match exactly.

● Input req_new (1 bit)

●   Input req_type (1 bit)

●   Input req_addr (32 bits)

●   Input req_data (32 bits)

●   Output resp_hit (1 bit)

● Output resp_data (32 bits)

We have also provided several MemBlocks in the skeleton file to help guide you in your implementation. You must use all of the provided MemBlocks in your cache implementation.

Instructions

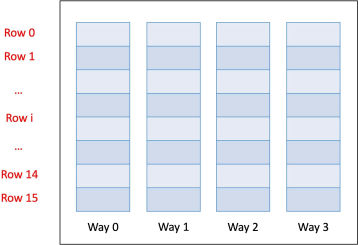

The following figure shows a high-level design of what your 4-way cache should look like.

Figure 2: High-level Cache Design

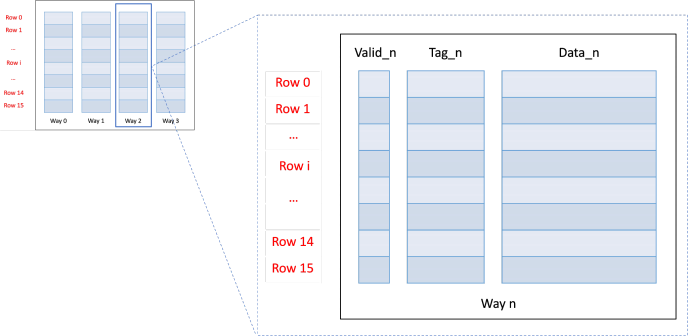

Each Way entry consists of a Valid Field, Tag field, and Data Block, as shown in Figure 4. As previously mentioned, each Data Block is 4 words in length. The Valid field should be 1 bit. The size of the Tag field is determined by how many bits a referenced memory address requires for its Offset Field and Index Field (see Figure 3). Because our cache has 24  rows,   the Index Field should be 4 bits. Because there are 24   bytes in each Data Block, the Ofset Field should be 4 bits. Therefore, the Tag Field should be 24 bits (32 - 4 - 4 = 24 bits).

Figure 3: Composition of a requested memory address

Figure 4: Composition of cache rows within some way n

Expected Cache Behaviour

When req_new = 1, that means your cache is receiving a new request for the memory address provided by the req_addr Input. When req_new = 0, your cache should output 0 for both resp_hit and resp_data and remain unchanged (i.e., no writes should occur).

Handling Read Hits

When req_new = 1 and req_type = 0, that means that this is a read request. If req_addr hits in your cache, you should return the requested data as your resp_data. Output “ 1” for

resp_hit.

Handling Write Hits

When req_new = 1 and req_type = 1, that means that this is a write request. If req_addr hits in your cache, replace the appropriate word with req_data and return “ 1” as your resp_hit. Output “ 0” as your resp_data.

Handling Read Misses

On a cache miss, our cache will not access a larger memory as would occur in a regular memory hierarchy. You may instead assume the new block's contents are "0". If you miss on req_addr, you should return “ 0” as your resp_data and output “ 0” as your resp_hit. The replaced data block should be set to “ 0” and valid for future accesses.

Handling Write Misses

On a write miss, resp_data and resp_hit should output “0” as with a read miss. A new entry should be added to the cache for req_addr, whose data block should consist of req_data at the appropriate word location and the rest of the words in the block set to “0” As with a read miss, the new block should be made valid.

Round-robin Cache Replacement Policy

For this assignment, we want you to implement your cache such that it inserts new entries into the cache following a round-robin policy per row. When you miss on req_addr, you have to replace an existing entry in the cache row to make room for the data at req_addr. req_addr maps to some Row i, and there are 4 slots you can place in that row. You will need to use the repl_way MemBlock structure to help you keep track of which slot you should replace next for each row. For example, you had to replace entries in some Row i repeatedly. First, you would replace the slot in Way 0,then Way 1,then Way 2,then Way 3,and then back to Way 0.

Design Note

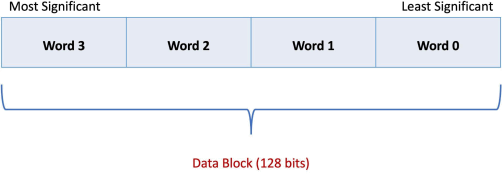

Note about byte order in Data Block: For the purposes of this lab, Byte 0 in the Data Block is the least significant byte, meaning that Word 0 is also the least significant word (as shown in Figure 5). You would otherwise know this as little-endian order.

Figure 5: Byte Ordering Within the Data Block

TLDR (but please read the instructions)

● What are you implementing?

○ A 4-way, set-associative cache

● What are the cache specs?

○ 32 bit addresses

○ 4 ways

○ 16 rows

○ 16 bytes (4 words) of data per block

● What replacement policy should you follow?

○ Round-Robin

● When do you replace an entry in the cache?

○ In the same cycle you had a miss

● How should you split up “req_addr”?

○ [tag (24 bits)][index (4 bits)][offset (4bits)]

● What should your cache output?

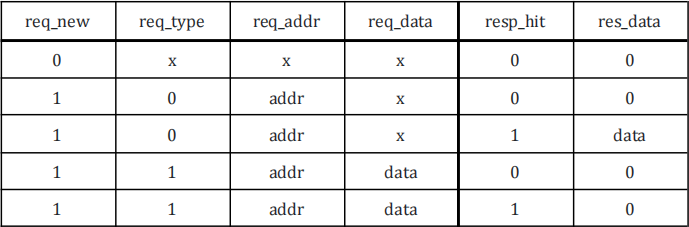

○ Refer to the table below. Note that “x” values are “don’t care”
