CSCI 2110 Data Structures and Algorithms

Laboratory No. 2

Algorithm Complexity Analysis

This is an experimental lab in which you will write and run three small programs to get a hands-on understanding of algorithm complexity. Each program will implement a simple algorithm of a different time complexity. You will test how long each algorithm takes to execute on your machine for different inputs.

Although raw execution time is not an accurate measure of algorithm complexity, it is acceptable for this experiment, since you are not comparing your execution times with others. This is an experiment to see how a function grows as input size increases on your own machine. You can use the following code template to obtain the execution time of your code.

long startTime, endTime, executionTime;

startTime = System.currentTimeMillis();

//code snippet (or call to the method) here

endTime = System.currentTimeMillis();

executionTime = endTime - startTime;

The above code will give the time for executing the code snippet in milliseconds. You can display the executionTime using System.out.println and/or save it.

Note: The execution times shown in your output file will differ from those in the sample outputs, as well as from the times captured by your peers during their own experiments. Slight differences related to system architecture, compu-tational resources, load, etc. make if very unlikely that any two students will submit identical outputs.

Marking Scheme

Each exercise carries 10 points.

Working code, Outputs included, Efficient, Good basic comments included: 10/10

No comments or poor commenting: subtract one point

Unnecessarily inefficient: subtract one point

Not all required methods were present: subtract one point

No outputs and/or not all test cases covered: subtract up to one point

Code not working: subtract up to six points depending upon how many test cases are incorrect.

Your final score will be scaled down to a value out of 10. For example, if there are three exercises and you score 9/10, 10/10 and 8/10 on the three exercises, your total is 27/30 or 9/10.

Error checking: Unless otherwise specified, you may assume that the user enters the correct data types and the correct number of input entries, that is, you need not check for errors on input.

Submission: All submissions are through Brightspace.

What to submit:

Submit one ZIP file containing all source code (files with .java suffixes) and a text document containing sample outputs, PNG or other image files containing your graphs. For each exercise you will minimally have to submit a demo Class with a main method implementing the algorithm to be tested and your test code, sample outputs, and a graph showing execution times. You will additionally submit a small text document with your response to the short answer question in Exercise 2.

Your final submission should include the following files: Prime.java, Exercise1.out, Exercise1Plot.png (or any other graph format), MatrixMult.java, Exercise2.out, Exercise2Plot.png (or any other graph format), Exercise2.txt (this has your answer to your question at the end of Exercise 2), Binary.java, Exercise3.out, Exercise3Plot.png (or any other graph format).

You MUST SUBMIT .java files that are readable by your TAs. If you submit files that are unreadable such as .class, you will lose points. Please additionally comment out package specifiers.

Late Submission Penalty: The lab is due on Sunday at 11.59 PM. Late submissions up to 5 hours (4.59 AM on Monday) will be accepted without penalty. After that, there will be a 10% late penalty per day on the mark obtained. For example, if you submit the lab on Monday at 12 noon and your score is 8/10, it will be reduced to 7.2/10. Submissions past two days (48 hours) after the grace submission time, that is, submission past 4.59 AM Wednesday will not be accepted.

Note: In all the following exercises, you will be writing one Class file with static methods to accomplish the tasks given and a main (tester) method. As such, these are not necessarily object-oriented programs in the true sense.

Exercise1 (Nth Prime)

A prime number is a positive integer that has no factors other than 1 and itself. For example, the first six prime numbers are 2, 3, 5, 7, 11, and 13. If you are asked to find the 6th prime number, the answer is 13. For this exercise, you will write a program capable of calculating the 11th, the 101st, 1001st, 10001st, 100001st, and 1000001st prime and determine how long your program takes to find each of those primes. The skeleton of your Prime Class could look something like the code shared below. You can change and reuse this code if necessary. You can also add other static helper methods if wish.

/*

Prime Solution

*/

/**

This class tests the code for Lab2: Exercise1. It calls a method to

calculate the nth prime and prints information about running time.

*/

import java.util.*;

public class Prime{

  public static void main(String[] args){

    //TODO

      }

  public static long nthPrime(long p){

    //TODO

  }

}

Note: Use the long data type instead of int to accommodate large primes. If you use a naïve method to test if a value x is prime (testing all values less than x to determine if they are factors for example) then your program will take a long time to calculate the 1000001th prime. There are smarter ways to test if a number the prime that will reduce your execution time. However, since this is an experimental lab to determine the execution time of an algorithm, any method to determine the prime will be accepted.

Input/output

Your program should accept input in the following format:

● Values denoting which prime to find separated by whitespace

● Entering 0 terminates the list

Your program should provide output in the following format:

● The n-value, the value of the nth prime, followed by the elapsed time.

Six Student Generated Test Cases

Test that your program can calculate the following primes:

● 11th ,

● 101st ,

● 1001st ,

● 10001st ,

● 100001st ,

● 1000001st

Do not test all 6 cases at once. Start with the first 2, then 3, etc. If your program hangs on larger values,note this in your test file.

Once you are sure that it is returning the correct values, set it up to time your code’s execution in milliseconds. Save data related to execution times in a text file called Exercise1out.txt, and plot themon a simple graph.

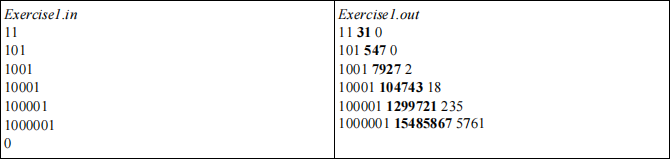

Sample inputs and outputs:

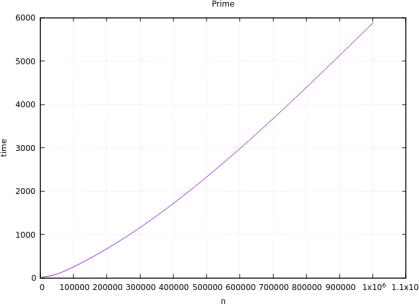

Sample graph:

You will submit both sample outputs and a line graph showing execution time in milliseconds on the Y-axis and input size on the X-axis. You can use LibreOffice Clac, Microsoft Excel, or a similar program to draw your graph. You have access to a simple but powerful plotting tool called GNUPlot on Unix-like systems like Bluenose, that will automatically create graphs for you. You may optionally choose to plot your points manually and scan your work for submission.

Note: You may need to test additional cases in order to collect sufficient data to create smooth or representative plot.

Exercise 2 (Matrix Multiplication)

For this exercise, you will write a program to multiply two matrices. See the given java file MatrixMult.java. You may use this as starter code. It contains commented out print methods to help debug your multiplier.

Assume that the two input matrices are square (that is, they are n X n matrices, i.e. n rows by ncolumns).

To multiply matrix a by matrix b, where c is the result matrix, use the formula:

cij = ai1*b1j + ai2*b2j + ai3*b3j

For example, the upper left corner of matrix c (row 1 column 1) would be calculated from a11*b11+a12*b21+a13*b31. Remember that in Java, arrays start at index 0.

Since we are only interested in the execution time, you may assume that all the elements of matrices a and b are identical. You can also assume that you are multiplying only square matrices (that is, numberof rows == number of columns).

Input/output

    Your program should accept input in the following format:

● Each line will contain a pair of positive integers separated by whitespace, indicating the dimensions of the matrices to be multiplied (n) and the value to fill the matrices with (num). Inthe first sample below, we start off with the input 3 3, indicating a 3 x 3 matrix filled with the value 3 in every cell.

    Your program should provide output in the following format:

● The size of the two matrices multiplied and the execution time in milliseconds.

Twelve Student Generated Test Cases

    Test that your program works for the following inputs:

● 3 3

● 20 3

● 100 3

● 200 3

● 300 3

● 400 3

● 500 3

● 600 3

● 700 3

● 800 3

● 900 3

● 1000 3

Once you are sure that it is correctly multiplying matrices, set it up to time your code’s execution in milliseconds. Save data related to execution times in a text file called Exercise2out.txt, and plot them on a simple graph. You may test your cases one at a time.

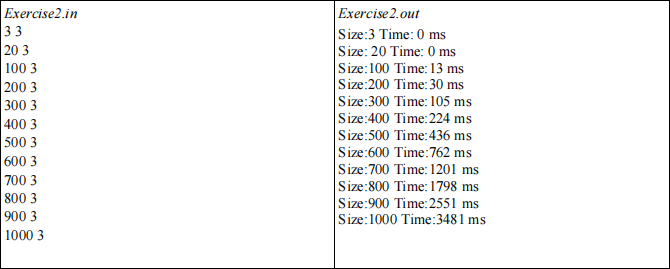

Sample inputs and outputs:

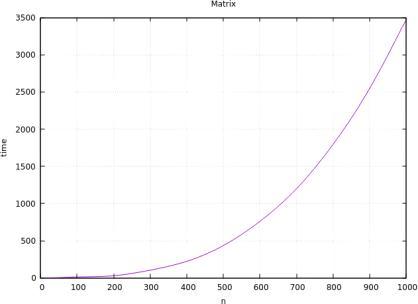

Sample graph:

Note: You may need to test additional cases in order to collect sufficient data to create smooth or repre-sentative plot.

Short Answer Question:

Finally, test your program with n=10000 and num=3. You will see an error message, like:

Exception in thread "main" java.lang.OutOfMemoryError: Java heap spaceat

MatrixMult.multiplyMatrix(MatrixMult.java:45)

at MatrixMult.main(MatrixMult.java:32)

Do a little research, figure out why this happens (use online resources). Prepare and submit a short answer with your solutions, call it Exercise2.txt. Make sure that you cite your references at the end of your answer.

Exercise 3: In this exercise you will write a small program for which the execution time grows exponentially. Your program accepts an integer n and generates all the binary numbers for the integers 0 to 2n-1. For example,

If n = 2, then 2n is 4, so your program generates binary numbers for the integers 0, 1, 2, and 3, which are 00, 01, 10 and 11, respectively.

Thus, your program generates

00

01

10

11

If n=3, then 2n is 8, so your program generates binary numbers for the integers 0,1,2,3,4,5,6, and 7.

Your program generates

000

001

010

011

100

101

110

111

/*

Binary Number Generation

*/

/**

This class tests the code for Lab2: Exercise3. It calls a method that accepts a positive integer n and generates binary numbers between 0 and 2^n -1. The main method prints information about running time.

*/

import java.util.*;

public class Binary{

  public static void main(String[] args){

    //TODO

      }

  public static void generateBinary(int n){

    //TODO

  }

}

Note: This is actually a very simple program. The generateBinary method has a for loop to go from 0 to 2n-1.

You can use the built-in method

Integer.toBinaryString(x) to convert an integer x into its binary equivalent. The method will return a String.

Note that you are not printing these binary numbers – just generating them to get the execution times.

Also (int)(Math.pow(a,b)) gives ab as an integer.

A sample dialog of your program is:

Enter a positive integer: 3

The execution time to generate binary numbers from 0 to 7 is 0.0 ms

Another example:

Enter a positive integer: 10

The execution time to generate binary numbers from 0 to 1023 is 2 ms

Test your program for input values of 10, 12, 14, 16, …., 28, 30, 32, 34, etc.

You will see that the program takes a long time even for n = 28 or 30. Collect enough values and plot a graph of n vs. execution time.
