Lab 3: Encoder

Note: the due date of this lab has been extended to Tuesday, November 21 to accommodate our class progress.

Introduction

Data compression is the process of encoding information using fewer bits   than the original representation. Run-length encoding (RLE) is a simple yet effective compression algorithm: repeated data are stored as a single data  and the count. In this lab, you will build a parallel run-length encoder called Not Your Usual ENCoder, or  nyuenc for short.

Objectives

Through this lab, you will:

   Familiarize yourself with multithreaded programming using POSIX

threads.

   Learn how to implement a thread pool using mutexes and condition variables.

   Learn how to use a thread pool to parallelize a program.

   Get a better understanding of key IPC concepts and issues.

   Be a better C programmer and be better prepared for your future

technical job interviews. In particular, the data encoding technique that you will practice in this lab frequently appears in interview questions.

Run-length encoding

Run-length encoding (RLE) is quite simple. When you encounter n

characters of the same type in a row, the encoder ( nyuenc ) will turn that into a single instance of the character followed by the count n.

For example, a Øle with the following content:

would be encoded (logically, as the numbers would be in binary format instead of ASCII) as:

Note that the exact format of the encoded Øle is important. You will store     the character in ASCII and the count as a 1-byte unsigned integer in binary format. See the example below for the actual content in the output Øle.

In this example, the original Øle is 16 bytes, and the encoded Øle is 6 bytes.

For simplicity, you can assume that no character will appear more than 255 times in a row. In other words, you can safely store the count in one byte.

Milestone 1: sequential RLE

You will Ørst implement  nyuenc as a single-threaded program. The encoder

reads from one or more Øles speciØed as command-line arguments and writes to  STDOUT . Thus, the typical usage of  nyuenc would use shell redirection to write the encoded output to a Øle.

Note that you should use  xxd to inspect a binary Øle since not all

characters are printable.  xxd dumps the Øle content in hexadecimal.

For example, let’s encode the aforementioned Øle.

If multiple Øles are passed to  nyuenc , they will be concatenated and

encoded into a single compressed output. For example:

Note that the last  a in the Ørst Øle and the leading  a ’s in the second Øle are merged.

For simplicity, you can assume that there are no more than 100 Øles, and the total size of all Øles is no more than 1GB.

Milestone 2: parallel RLE

Next, you will parallelize the encoding using POSIX threads. In particular, you will implement a thread pool for executing encoding tasks.

You should use mutexes, condition variables, or semaphores to realize   proper synchronization among threads. Your code must be free of race conditions. You must not perform busy waiting, and you must not use   sleep() ,  usleep() , or  nanosleep() .

Your  nyuenc will take an optional command-line option  -j jobs , which  speciØes the number of worker threads. (If no such option is provided, it runs sequentially.)

For example:

You can see the difference in running time between the sequential version   and the parallel version. (Note: redirecting to  /dev/null discards all output, so the time won’t be affected by I/O.)

How to parallelize the encoding

Think about what can be done in parallel and what must be done serially by a single thread.

Also, think about how to divide the encoding task into smaller pieces. Note that the input Øles may vary greatly in size. Will all the worker threads be    fully utilized?

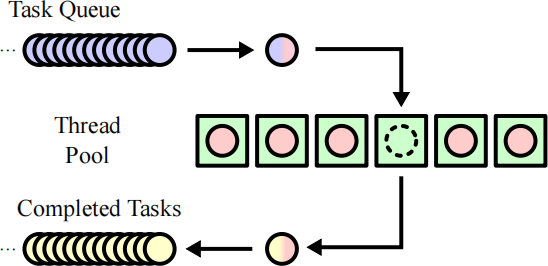

Here is an illustration of a thread pool from Wikipedia:

At the beginning of your program, you should create a pool of worker

threads (the green boxes in the Øgure above). The number of worker

threads is speciØed by the command-line argument  -j jobs .

The main thread should divide the input data logically into Øxed-size 4KB  (i.e., 4,096-byte) chunks and submit the tasks (the blue circles in the Øgure above) to the task queue, where each task would encode a chunk.

Whenever a worker thread becomes available, it would execute the next task in the task queue. (Note: it’s okay if the last chunk of a Øle is smaller  than 4KB.)

For simplicity, you can assume that the task queue is unbounded. In other words, you can submit all tasks at once without being blocked.

After submitting all tasks, the main thread should collect the results (the

yellow circles in the Øgure above) and write them to  STDOUT . Note that you    may need to stitch the chunk boundaries. For example, if the previous chunk ends with  aaaaa , and the next chunk starts with  aaa , instead of writing a5a3 , you should write  a8 .

It is important that you synchronize the threads properly so that there are  no deadlocks or race conditions. In particular, there are two things that you need to consider carefully:

   The worker thread should wait until there is a task to do.

   The main thread should wait until a task has been completed so that it    can collect the result. Keep in mind that the tasks might not complete in the same order as they were submitted.

Compilation

We will grade your submission in an x86_64 Rocky Linux 8 container on

Gradescope. We will compile your program using  gcc 12.1. 1 with the C17 standard and GNU extensions.

You must provide a  Makefile , and by running   make , it should generate an executable Øle named  nyuenc in the current working directory. Note that you need to add   LDFLAGS=-pthread to your  Makefile . (Refer to Lab 1 for an   example of the  Makefile .)

During debugging, you may want to disable compiler optimizations.

However, for the Ønal submission, it is recommended that you enable

compiler optimizations    -O ) for better performance.

You are not allowed to use thread libraries other than pthread.

Evaluation

Your code will Ørst be tested for correctness. Parallelism means nothing if your program crashes or cannot encode Øles correctly.

If you pass the correctness tests, your code will be measured for

performance. Higher performance will lead to better scores.

Please note that your computer needs to have at least as many cores as the number of threads you use in order to beneØt from parallelization.  Consider running your program on the CIMS compute servers if you are  using a single- or dual-core machine.

strace

We will use  strace to examine the system calls you have invoked. You will suffer from severe score penalties if you call  clone() too many times,

which indicates that you do not use a thread pool properly, or if you call

nanosleep() , which indicates that you do not have proper synchronization.

 On the other hand, you can expect to Ønd many  futex() invocations in the strace log. They are used for synchronization.

You can use the following command to run your program under  strace and dump the log to  strace.txt :

Valgrind

We will use two Valgrind tools, namely Helgrind and DRD, to detect thread errors in your code. Both should report 0 errors from 0 contexts.

You can use the following command to run your program under Helgrind:

You can use the following command to run your program under DRD:

Note that Valgrind is very slow; so you should only test it with small Øles.     Also note that Valgrind may also have false negatives, meaning that a report of  0 errors does not guarantee your program is actually free of errors.

Submission

You must submit a   .zip archive containing all Øles needed to compile

nyuenc in the root of the archive. You can create the archive Øle with the following command in the Docker container:

Note that other Øle formats (e.g.,  rar ) will not be accepted.

You need to upload the   .zip archive to Gradescope. If you need to

acknowledge any inÙuences per our academic integrity policy, write them as comments in your source code.

Rubric

The total of this lab is 100 points, mapped to 15% of your Ønal grade of this course.

   Compile successfully and encode the example Øle correctly. (40 points)    Milestone 1.

   Correctly encode one Øle. (10 points)

   Correctly encode multiple Øles. (10 points)

   Milestone 2.

   Correctness. (20 points)

Your program should produce the correct output within one minute on Gradescope without crashing.

   Free of thread errors (e.g., deadlocks, race conditions). (15 points) For each error context reported by Helgrind or DRD (we will take the

smaller of the two), there will be 5 points deduction.

   Performance. (5 points)

Your program will not be evaluated for performance if it fails any previous test.

If your program is correct and free of thread errors, its performance will be compared against Prof. Tang’s implementation on a large

multi-threaded workload.

   You will get 5 points if your program’s running time is within 2x of Prof. Tang’s.

   You will get 4 points if your program’s running time is within 3x of Prof. Tang’s.

   You will get 3 points if your program’s running time is within 5x of Prof. Tang’s.

   You will get 2 points if your program’s running time is within 7x of Prof. Tang’s.

   You will get 1 point if your program’s running time is within 10x of Prof. Tang’s.

You will lose all points for Milestone 2 if your implementation is not based  on the thread pool, if you invoke  nanosleep (directly or indirectly), or if you use thread libraries other than pthread.

The autograder

We are providing a sample autograder with a few test cases. Please extract them inside the Docker container and follow the instructions in the  README Øle. (Refer to Lab 1 for how to extract a  .tar.xz Øle.)

Note that the sample autograder only checks if your program has produced

the correct output. You need to run valgrind and measure the performance yourself. Also note that these test cases are not exhaustive. The test cases   on Gradescope are different from the ones provided and will not be

disclosed. Do not try to hack or exploit the autograder.

Tips

Don’tprocrastinate!

This lab requires signiØcant programming and debugging effort. Therefore, start as early as possible! Don’t wait until the last week.
