Optima Furniture Company used to work with the above form for their sales. Hundreds of these forms are filled weekly to control the sales of this company. The company knew you have

finished the CST4301 Database (DB) course and hired you as Data Base designer to make their life easier; they asked you to create a DB system to control all sales by moving these forms into a relational DB system.

Customers can order many items as shown in the form. Normally the company sells 100’s of

items designated by their item No. The sale is assigned to one salesperson designated by his/her own code (salesperson can have many sales order). Each sale order is designated by the Sale

Order Number.

Your first steps to do this job will be:

Step1: Cluster the fields given in the form into tables

Step2: Create a Primary Key (PK) for each designed table

Step3: Connect these table into a relational DB

Step4: You might need extra table to join all designed tables

Step5: Summarize the above steps above (1,2,3,4) into ERD (Entity Relationship Diagram)

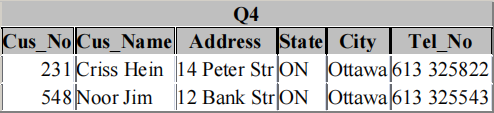

Q1:  Create the tables and deploy the tables with the data derived from the forms. Underline the primary keys in the created tables:

Q2. Draw the Entity Relationship Diagram (ERD) showing the fields and the PKs.  Underline  the PKs in the tables.  Connect the tables to show their relationship in the Database.  The table in the ERD includes just the field names not the data.
