In this lab assignment, you will implement a two-level (L1 and L2) cache simulator in C++. The cache  simulator will  take  in several parameters as input to configure the cache (block size, associativity, etc.) along with a memory address trace file as input.

Cache System

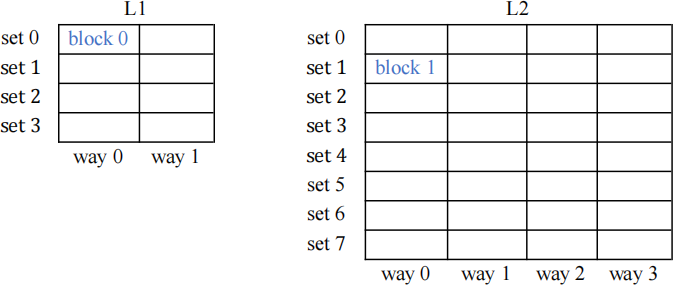

Here is an example diagram of a two-level cache.

L1: Two-way set associative cache with a block size of 4 bytes.

L2: Four-way set associative cache with a block size of 4 bytes.

In general, a cache can be thought of as an array of sets where each set is a pointer to an array of ways. The size of each way is determined by the block size. You can consider a direct-mapped cache as a “one-way” set associative cache (i.e., having many sets with each set having exactly one way) and a fully associative cache having a single set with many ways.

Here’s a closer look of block 0 (L1) using 4 Bytes per block.

We will assume L1 and L2 have the same block size.

Since we are simulating cache operations, we will not consider actual data (i.e., the Bytes in the above figures) when testing inputs. You only need to model the accesses to capture hit and miss behavior, tracking all data movement and updating caches (with addresses) properly.

Address

An example of an address used in the cache (MSB → LSB):

The  index  is used to select a set (i.e., a row in the above table). The tag is used to decide whether it “hits” in one of the set’s ways. The offset is used to pick a Byte out of a block.

Cache Policy to Implement

●  (Exclusive) the L1 and L2 are exclusive. [Reference]

●  For a W-way cache, the ways are numbered from {0, 1, 2, … , W- 1} for each set. If an empty way exists (i.e., the valid bit is low), data is placed in the lowest numbered empty way.

●  (Eviction)  When  no  empty  way  is  available,  eviction  is  performed using  a  round-robin policy. To select an eviction Way#, there is a counter initialized to 0 that counts to W- 1 and loops back to zero. The current value of the counter indicates the Way from which data is to be evicted. The counter is incremented by 1 after an eviction occurs in the corresponding set.

Note that there is a counter for every set in the cache.

Read Miss: on a read miss, the cache issues a read request for the data from the lower level of the cache.

●  Tips for Read:

o   Read L1 hit: easy case, the data is available

o   Read L1 miss, Read L2 hit: first set the L2 valid bit low; the cache block is moved from the L2 cache to the L1 cache.

▪   What ifL1 is full? Evict a block from L1 to make space for the incoming data. Evicted L1 block will be placed to L2. What if L2 is full? Similarly evict a block from L2 before placing the data.

o   Read L1 miss, Read L2 miss: read request for main memory; data fetch to be used and stored in L1. Again, what ifL1 is full? Eviction.

Eviction follows the round-robin policy mentioned above.

●  Tips for Eviction:

o   Evicting  from  L1:  evicted data must be placed into L2 (this might trigger an L2 eviction!)

o   Evicting from L2 for incoming data: check L2 dirty bit first

▪   if the dirty bit is high, evict L2 data to main memory

▪   otherwise, no need to write main memory; simply overwrite L2 with incoming data

Write Hit: both the L1 and L2 caches are write-back caches.

Write Miss: both the L1 and L2 caches are write no-allocate caches. On a write miss, the write

request is forwarded to the lower level of the cache.

the cache.

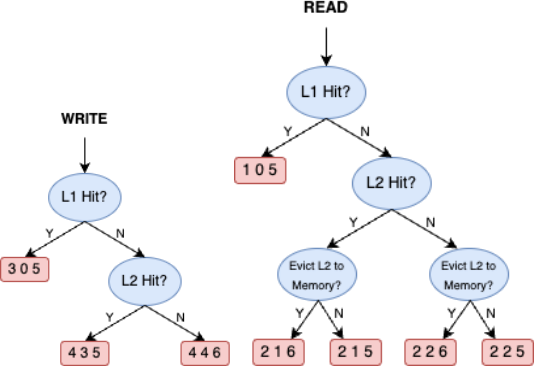

●  Tips for Write:

o   Write Hit L1: set the dirty bit high in the L1 cache

o   Write Miss L1, Write Hit L2: set the dirty bit high in the L2 cache

o   Write Miss L1, Write Miss L2: write data directly to main memory

Configuration File (cacheconfig.txt):

The parameters of the L1 and L2 caches are specified in a configuration file. The format of the configuration file is as follows.

●  Block  size:  Specifies  the block  size  for  the  cache  in bytes. This  should always be a non-negative power of 2 (i.e.,  1, 2, 4, 8, etc.). Block sizes will be the same for both caches in this lab.

●  Associativity:  Specifies  the  associativity  of  the  cache.  A  value  of  " 1"  implies  a direct-mapped  cache, while  a  "0" value implies fully-associative.  Should always be a non-negative power of 2.

●  Cache size: Specifies the total size of the cache data array in KiB.

An example config file is provided below. It specifies a  16KiB direct-mapped L1 cache with 8 byte blocks, and a 32KiB 4-way set associative L2 cache with 8 byte blocks.

Sample configuration file for L1 and L2 Cache (cacheconfig.txt):

In the above example, the L1 cache will have 2048 sets each with one way. The L2 cache will have  1024  sets  each  with  4  ways.  The  skeleton  code  provided  reads  the  config  file  and initializes variables for the L1 and L2 cache parameters.
