1    Description

In this assignment, you will implement Batch Gradient Descent to fit a line into two-dimensional data set. You will implement a set of Spark jobs that will learn parameters for such lines from the New York City Taxi trip reports in 2013. The dataset was released under the FOIL (The Freedom of Information Law)  and  made  public  by  Chris  Whong  (https://chriswhong.  com/open-data/foil_nyc_taxi/).  See Assignment 1 for details about this data set.

We would like to train a linear model between travel distance in miles and fare amount (the money paid to the taxis).

2    Taxi Data Set - Same data set as Assignment 1

This is the same data set as used for Assignment 1. Please have a look at the table description there.

The data set is in Comma Separated Volume Format (CSV). When you read a line and split it by a

comma sign ”,” you will find the string array with a length of 17. With the index number starting from zero, we need for this assignment to get the index 5 trip distance (trip distance in miles) and index 11   fare amount ( fare amount in dollars) as stated in the following table.

Table 1: Taxi Data Set fields

You can use the following PySpark Code to cleanup the data.

def isfloat(value):

try:

float(value)

return True

except:

return False

def correctRows(p):

if(len(p)==17):

if(isfloat(p[5]) and isfloat(p[11])):

if(float(p[5])!=0 and float(p[11])!=0):

return p

testDataFrame = spark.read.format('csv').\

options(header='false', inferSchema='true',  sep =",").\

load(testFile)

testRDD = testDataFrame.rdd.map(tuple)

taxilinesCorrected = testRDD.filter(correctRows)

In addition to the above filtering, you should remove all of the rides with a total amount larger than  600 USD and less than 1 USD. You can preprocess the data, clean it and store it in your own cluster storage. To avoid additional computation in each run.

3    Obtaining the Dataset

The small dataset (93 MB compressed,  384 MB uncompressed) for implementation and testing   purposes (roughly 2 million taxi trips) is available from Google Storage using the following link: https://storage.googleapis.com/met-cs-777-data/taxi-data-sorted-small.csv.bz2.

The big dataset (9GB compressed,  32GB uncompressed) is available at this link: https://storage.googleapis.com/met-cs-777-data/taxi-data-sorted-large.csv.bz2.

When running your code on the cluster, to access the datasets, you need to use the following internal Google Storage URLs:

Table 2: Data set on Google Cloud Storage - URL

4    Assignment Tasks

4.1    Task 1: Simple Linear Regression (4 points)

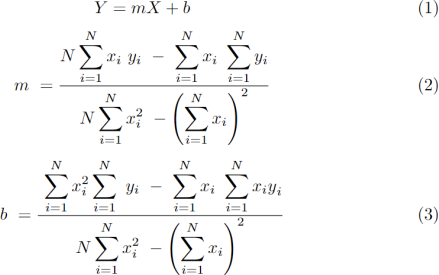

We want to find a simple line to our data (distance, money). Consider a Simple Linear Regression

model given in equation (1). The solutions for the m slope of the line and y-intercept b are calculated based on equations (2) and (3).

Implement a PySpark Job that calculates the exact answers for the parameters m and b. The line slope is the parameter m, they-intercept of the line is b, and N is the number of samples in the dataset.

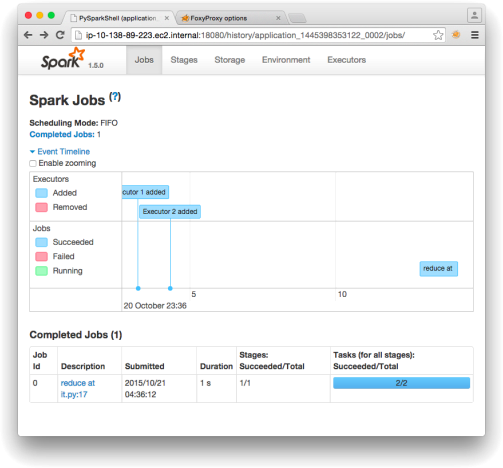

Run your implementation on the large data set and report the computation time for your Spark Job for this task. You can find the time to complete your Job on the Google Cloud System, or you can write    your code to log the completion time.

Note on Task 1: Execution of this task on a large dataset, depending on your implementation, can take a longer time. For example, on a cluster with 12 cores in total, it takes more than 30 min of computation time.

Use RDD caching. Each RDD that is used more than once in the following calculations makes sense to be cached. Use the myRDD.cache()to cache the RDD.  This will allow your code to use the in- memory cached data, and it will be much faster.

Important Note: For this question, you are not allowed to use any libraries. (Pyspark, Scikit Learn, or any other framework). You should formulize the given equations and write your own code using pyspark.

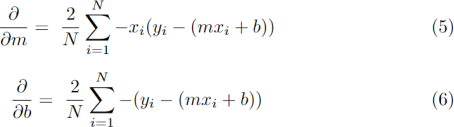

4.3    Task 3 - Fit Multiple Linear Regression using Gradient Descent (8 Points)

We would like to learn alinear model with four variables to predict the total paid amounts of Taxi rides. The following table describes the variables that we want to use.

Table 3: Taxi Data Set fields

●   Initialize all parameters with 0

●   Start with a very small learning rate and then increase it to speedup the learning. For example, you  can  start  with  learningRate=0.0000001  and  try  bigger  rates  until  the  process  is  still converging. Note: The optimal learning rate for the big dataset can be different from the optimal learning rate for the small dataset

●   The maximum number of iterations should be 50, and can be increased if needed.

●   Use NumPy Arrays to calculate the gradients - Vectorization

●   Implement the ”Bold Driver” technique to change the learning rate dynamically. (3 points of 8 points)

●   You need to find parameters that will lead to convergence of the optimization algorithm.

Your task:

●   Print out the costs in each iteration

●   Print out the model parameters in each iteration

●   Comment on how you can interpret the parameters of the model. What is the meaning of mi and b in this case?

Note: Use RDD caching. Before entering the Gradient Descent Loop, please remember to cache your RDD by using the command: myRDD.cache(). This will allow your gradient descent code to use the in- memory cached data, and it will be much faster.

5    Important Considerations

5.1 Machines to Use

One thing to be aware of is that you can choose virtually any configuration for your Cloud Cluster - you can choose different numbers of machines and different configurations of those machines. And each is going to cost you differently! Since this is real money, it makes sense to develop your code and run your jobs locally, on your laptop, using the small data set. Once things are working, you’ll then move to Cloud.

As a proposal for this assignment, you can use the e2-standard-4 (4vCPU+16GB RAM) for the master node and e2-standard (8vCPU+32GB RAM) or e2-highmem-8 (8vCPU+64GB RAM) for two worker nodes.

Please be aware that there is a quota of 24vCPUs total for all nodes in the cluster for our educational accounts.

Remember to delete your cluster after the calculation is finished!!!

More     information      regarding      Google      Cloud      Pricing      can      be     found      here https://cloud.google.com/products/calculator. As you can see average server costs around 50 cents per hour. That is not much, but IT WILL ADD UP QUICKLY IF YOU FORGET TO SHUT OFF YOUR MACHINES. Be very careful, and stop your machine as soon as you are done working. You can always comeback and start your machine or create a new one easily when you begin your work again. Another thing to be aware of is that Google and Amazon charge you when you move data around. To avoid such charges, do everything in the ”Iowa (us-cental1)” region. That’s where data is, and that’s where you should put your data and machines.

• You should document your code very well and as much as possible.

• Your code should be compilableon a Unix-based operating system like Linux or macOS.

5.2    Academic Misconduct Regarding Programming

In a programming class like ours, there is sometimes a very fine line between ”cheating” and acceptable and beneficial interaction between peers. Thus, it is essential that you fully understand what is and what is not allowed in collaboration with your classmates. We want to be 100% precise, so there can be no confusion.

The rule on collaboration and communication with your classmates is very simple: you cannot transmit or receive code from or to anyone in the class in anyway—visually (by showing someone your code), electronically (by emailing, posting, or otherwise sending someone your code), verbally (by reading code to someone) or in any other way we have not yet imagined. Any other collaboration is acceptable.

The rule on collaboration and communication with people who are not your classmates (or your TAs or instructor) is also very simple: it is not allowed in any way, period. This disallows (for example) posting any questions of any nature to programming forums such as StackOverflow. As far as going to the web and using Google, we will apply the ”two-line rule” . Go to any web page you like and do any search that you like. But you cannot take more than two lines of code from an external resource and actually include it in your assignment in any form. Note that changing variable names or otherwise transforming or obfuscating code you found on the web does not render the
