The goal of the project assignment is to gain practical experience in applying several     database management concepts and techniques using the Oracle DBMS. In particular, this assignment mainly focuses on ensuing database semantics using various integrity constraints.

Your main task is to first populate your database with appropriate data, then design,    implement, and test the appropriate queries to perform the tasks explained in the next sections.

Roadmap: Section 1 describes the database schema for the assignment and provides  instructions on downloading the script file needed to create and populate the database. Section 2 describes the tasks to be completed for this assignment. Finally, Section 3

explains the submission guidelines and marking scheme.

Enjoy the project!

Section 1 — the TRAVEL database

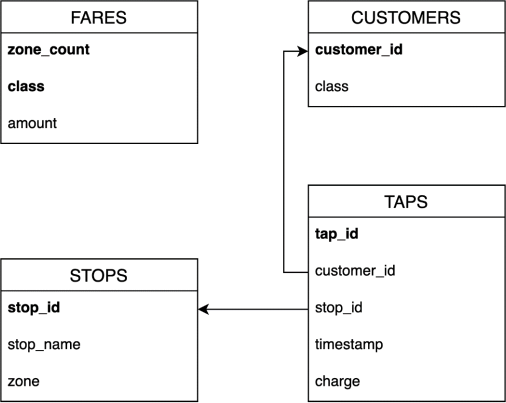

The TRAVEL database captures information about public transport users’ journeys and their fares. The database includes four tables: CUSTOMERS, FARES, STOPS and TAPS.

Users travel around the network, “tapping on” with their fare card when they enter a station or vehicle, and “tapping off” when they exit a station or vehicle.

•      CUSTOMERS stores each customer’s fare class (e.g., ‘Adult’ or ‘ Concession ’) and their fare card ID.

•      FARES stores the price in cents, for each combination of class and the number of zones travelled.

•      STOPS stores information about each stop on the network, particularly its name and fare zone.

•      TAPS stores the travel history of each customer, in the form of the stops they have tapped on or off at, and the fares they were charged along the way.

Please go to Blackboard and download the supplementary script file for this assignment, TravelDB.sql.

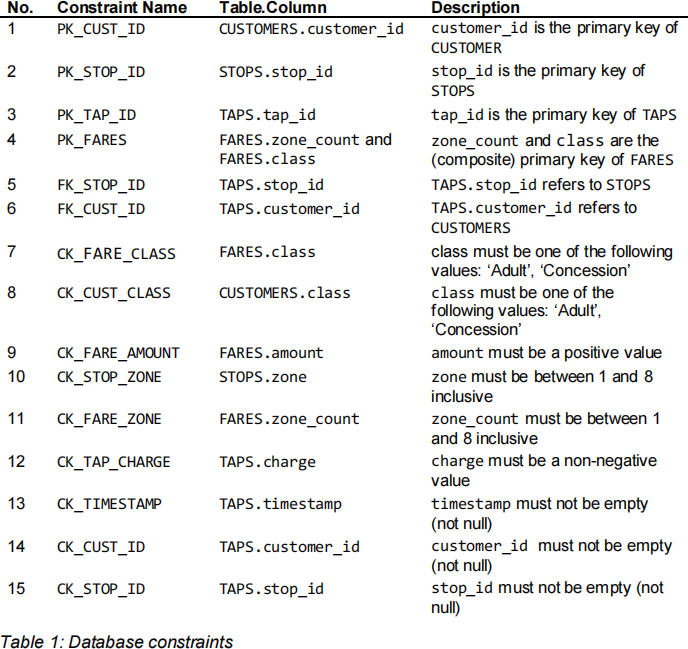

Database constraints: Table 1 lists all the constraints that should be created on the TRAVEL database.

Note: Constraints 7-12 must also make sure that their values are not null.

Section 2 — Assignment Tasks

Create and Populate Database: You need to execute the script file TravelDB.sql to   create and populate your database before working on the following tasks. Wait until you see the message “Commit complete.” It should take several seconds. The script will

also attempt to drop related tables, sequences, and triggers.

Task 1 — Constraints

1.1 — Constraint discovery

After running the script file, you will notice that only some of the constraints listed in

Table 1 were created. Write an SQL statement to find out which constraints have been created on the four tables CUSTOMER, FARES, STOPS and TAPS.

1.2 — Constraint creation

Write the SQL statements to create all the missing constraints from Table 1.

Task 2 — Triggers

2.1 — Sequence object

Assume that tap_id should be automatically populated when a new tap is made by a    customer. Write an SQL statement to create a sequence object to generate values for   this column. The sequence, named TAP_ID_SEQ, should start from 3,000 and increment by 1.

2.2 — Sequence insertion

Write an SQL statement to create an Oracle trigger called BI_TAP_ID that binds the

sequence object TAP_ID_SEQ to the tap_id column, i.e., the trigger populates values of TAP_ID_SEQ to the tap_id column when a new tap is made.

2.3 — Basic Fares

Write an Oracle trigger called BI_BASIC_FARES which calculates the fare for each trip a customer makes and fills out Taps.charge accordingly. A trip consists of a tap-on

followed by a tap-off.

Fares are charged when tapping off, according to both the customer’s fare class and  the number of zones they have travelled through. The number of zones is calculated by taking the absolute difference of the tap-on and tap-off zone numbers, and then adding one. (When a customer taps on, a $0.00 charge is recorded.)

Note: you can assume that customers always tap on and off correctly.

2.4 “Eight then half-price”

The transport department has introduced a frequent user discount: customers who have travelled at least eight times in the last seven days are entitled to half-price travel from   the ninth trip onward. Write an Oracle trigger called BI_EIGHT_HALF to implement this functionality. (It should do the same thing as BI_BASIC_FARES when a customer is not eligible for half-price travel.)

Tip: you can disable a trigger with ALTER TRIGGER "TRIGGER_NAME" DISABLE;

2.5 — Continuations

For network planning reasons, the transport department has withdrawn “eight then half- price” and instead introduced free continuations when a customer’s journey involves     multiple trips. Customers are eligible for a continuation fare when their most recent

touch-on is less than one hour after their previous touch-off. In this case, they are charged only if their new trip involves new zones .

Write an Oracle trigger called BI_CONTINUATIONS to implement this behaviour. (It should do the same thing as BI_BASIC_FARES when a customer is not eligible for a continuation fare).

In the following examples, all four people are in the same fare class; a one-

zone fare is $2.00, a two-zone fare is $3.50 and a three-zone fare is $5.00.

Example 1: Alice catches a bus from her street (in Zone 1), to the city (also in Zone 1). She is charged a one-zone fare ($2.00) when tapping off. A few

minutes later, she then transfers onto a different bus which takes her to New Farm Park (also in Zone 1). She is charged $0.00 when she taps off again .

Example 2: Bob catches a bus from his street (in Zone 3), to the train station    (also in Zone 3). He is charged a one-zone fare ($2.00) when tapping off on     the bus. A few minutes later, he taps-on to enter the station and catches a train to the city (Zone 1). A three-zone fare would normally be $5.00, but as Bob has already paid a one-zone fare, he is charged the difference ($3.00) when he

taps off in the city.

Example 3: Carol makes the same trip as Alice, except that instead of

transferring immediately, she spent some time at a closing-down sale. Since it was more than an hour between tapping off in the city and tapping on again,  she is charged a second one-zone fare when she taps off at the park.

Example 4: Dave has some errands to run today. He first travels from his

house (in Zone 2) to Bob’s (Zone 3), then within an hour is heading to Alice’s (Zone 1), then again within an hour is heading home. He is charged a two-     zone fare ($3.50) when he taps off on Bob’s street, then the difference

between a two-zone and three-zone fare ($1.50) when he taps off atAlice’s street, and finally $0.00 when he taps off back home.
