CIVE50003 Computational Methods II
Linear eigenvalue problems for 2D frames
Fig. 1 – Frame ABCDEF with inclined members under various point loads

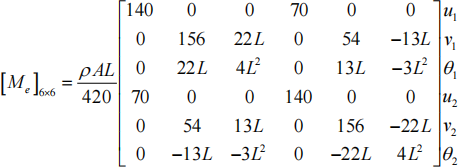

Q1. Frequency analysis. Consider the frame structure in Fig. 1 above. The mass matrix for a 2D Euler-Bernoulli general beam element is given by:
where ρ = 7850 kg/m3 = 7850×10-9 kg/mm3 is the material density (steel).
Assemble the global mass matrix [M] at the same time as the global stiffness matrix [K] and extract the lowest four eigenvalues and associated eigenvectors from the system [KFF]{ϕ} = ω2 [MFF]{ϕ}. Here each {ϕ}i is a general eigenvector representing the i-th natural vibration mode and each ωi is its corresponding natural angular vibration frequency (radians per second). The cyclic frequencies f = ω/2π should be 0.396, 1.041, 2.360 and 2.763 Hz. Plot each one in its own properly-annotated figure. Hint: you may find it useful to revise your notes from CM1. You will also need to apply a transformation matrix [Te] to account for each element’s orientation.

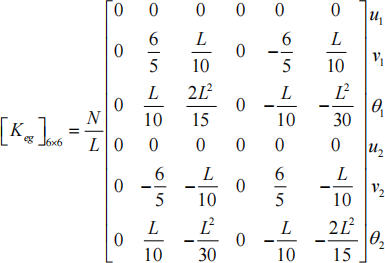

Q2. Buckling analysis. Consider the frame structure in Fig. 1 above. The geometric stiffness matrix for a 2D Euler-Bernoulli general beam element is given by:
Work out the axial force N in each element and on this basis build the global geometric stiffness matrix [Kg]. With this, extract the lowest four eigenvalues and associated eigenvectors from the system [KFF]{u} = λ[Kg,FF]{u}, where [K] is the ‘usual’ (material) stiffness matrix you already have. Here each {u}i is a general eigenvector representing the i-th critical buckling mode and each λi is its corresponding critical buckling load (Newtons). How many possible modes are there in your FE model? Plot each one in its own properly-annotated figure. What is the critical buckling load factor and is this structure safe? Is there any resemblance at all between the buckling and frequency eigenmodes?
