Question 1: Network Analysis (40 Marks)

Background

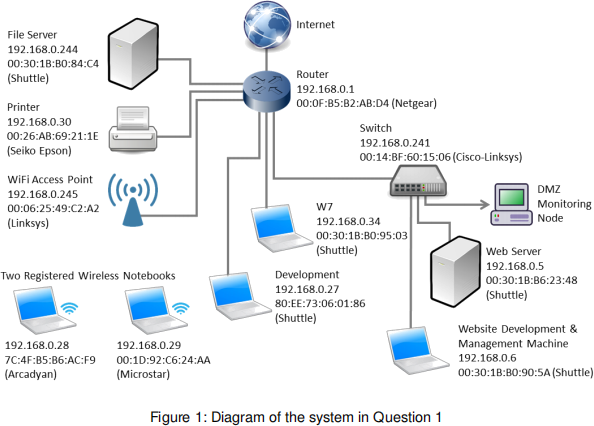

The system shown in Figure 1 belongs to a company known as DevCo. It provides a public

Internet-facing website hosted in the machine ‘Web Server’. The website content is developed and managed on the ‘Website Development & Management Machine’. The purpose of the

website is to advertise a small software development business, which is carried out in-house on the software ‘Development’ machine. The other computers in this system (W7 and the wireless notebooks) are used for office functions. The file server and printer provide shared services

across the system, and the wireless network is WEP encrypted.

The switch which hosts the Web Server and the associated management machine is provided with a spanning port which outputs all switch traffic to a dedicated packet monitor.

Maintaining the integrity and confidentiality of business data within the Development machine is critical to the business. Temporary non-availability of the webserver is not regarded as a

problem, but corruption of the website may harm the reputation of the company whose business is software-related.

At approximately 15:45 on 20 November, the user of the Development machine (192.168.0.27) was alerted by the host firewall by a generic alert which might suggest an abnormally high packet rate.

Specific Guidance

Your answers may be in the form of expanded notes, provided your documentation is sufficiently detailed for another analyst to understand and repeat your work.

You do not need to analyse network behaviours or features that are not associated with the attack.

Good marks will be given to succinct and properly supported analytic conclusions; assertions    without clear justification will not be regarded as adequate. In other words, you must find specific evidence to support your theory about the incident.

Question 2: Network Attack Mechanisms (30 Marks)

Background

You are the IT security director of a large insurance company. As a standard practice, your IT

systems security practices are audited annually by an external consultancy company, aiming to  detect any vulnerabilities. As part of their latest report, the consultants have provided you with a  suspicious network traffic capture (B-01-packet_capture_insurance.pcap), which  they claim is related to either a DNS poisoning attack or to a DNS amplification DDoS attack.     They report that they were not able to find conclusive evidence regarding which of the two attacks  actually took place, so they recommended that you be alert and vigilant for further developments.

The network traffic capture was obtained from the subnetwork where your insurance claim

analysis team works. In that subnetwork, analysts use PCs with read-only access to the

corporate database where all insurance claims are stored, and full access to the claim analysis  subsystem which stores the reports produced by the analysts about the insurance claims they   are assigned to. PCs in the subnet are assigned IP addresses from the range 192.168.43.0/25  (mask: 255.255.255.128), with broadcast address 192.168.43.127 and gateway 192.168.43.1.   The subnetwork also has access to the web, which is widely used by analysts when investigating  claims. DNS service is provided by the company-wide DNS server (IP address 144.32.128.242).

Question

Select only one of the options below, and justify your position by referring to the evidence provided in the network traffic capture and to your own research (max 600 words):

(a) You agree with the consultancy company that there is evidence of a DNS poisoning attack or a DNS amplification DDoS attack, but there is no conclusive evidence about which of those attacks actually took place.

(b) You disagree with the consultancy company, as the network traffic capture includes evidence that a DNS poisoning attack took place.

(c) You disagree with the consultancy company, as the network traffic capture includes evidence that computers in your organisation were part of a DNS amplification DDoS attack.

(d) You disagree with the consultancy company, as the network traffic capture does not include evidence of DNS poisoning or DNS amplification, but it includes evidence of a different attack.

(e) You disagree with the consultancy company, as the network traffic capture does not include evidence of DNS poisoning, DNS amplification, or any other attack.

Question 3: Network Perimeter Design (30 Marks)

Background

Your organisation has 70 user workstations and an Internet-facing webserver. The webserver is interfaced to the Internet via a router. The workstations are separated from the webserver by a

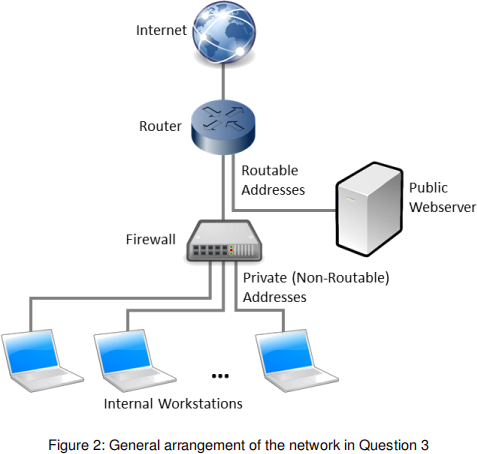

firewall. At present, users are able to access webservers on the Internet. The general arrangement is shown in Figure 2.

You need to provide an email service between email clients on the internal workstations and other users on the Internet via SMTP (not webmail).

Questions

You are required to answer the following questions, and provide a clear explanation that justifies your answers:

(i)  [15 Marks] Describe how you would provide the SMTP email service, including any additional network components that may be required, the protocols used and their function.
