1 Overview

1.1 Assessment Criteria

This assessment will determine your ability to:

1.    analyse the requirements outlined in the problem description;

2.    develop a conceptual model to assist you with the design of the database backend required for the system;

3.    use an industry-standard ER modeling tool to draw the ER model and generate SQL DDL statements for generating table schemas;

4.    identify and implementing efficient storage strategies for extremely large tables

5.    identify and implementing efficient partition strategies for extremely large tables

6.    write efficient queries on extremely large tables and describe the query plans that query

optimiser would likely be using and explain how a cost-based query optimiser would execute such query plans;

7.    write stored procedures and functions to automate common tasks in an Oracle database.

1.2 Learning Outcomes

This assessment will assess how you attained the following course learning outcomes:

CLO 1: apply advanced data analysis and modeling concepts, physical design, integrity, security and transaction management.

CLO 2: create stored procedures and functions to enhance the usability of a database;

CLO 3: apply techniques for efficient storing, accessing, securing, and recovering of data;

CLO 4: build an efficient database application with an emphasis on storage management, indexing, and query optimization.

2 Assessment Details

2.1 Preparation Work

You are required to implement the database backend for the below mentioned application on School’s Oracle server. In order to successfully complete these tasks you must have completed Week 1 – 4 lab    sheets and ensure that your Oracle account is correctly initiated and SQL Developer on your laptop is    configured correctly.

Another learning outcome of this assignment is to learn to use an industry-standard ER modeling tool to  draw the ER model and generate SQL DDL statements for generating table schemas. We use Oracle SQL   Developer tool for this purpose. Complete Section 4 of the Week 3 Tute/ Lab session prior to attempting the data modeling part of this assignment.

2.2 Assignment Task Description

Introduction

The Australian Electoral Commission (AEC – https://aec.gov.au) is responsible for providing the

Australian people with an independent electoral service which meets their needs and encourages them to understand and participate in the electoral process. Australia’s manual system of federal elections

has one of the most complex and time-consuming counting operations in the world. While it can at times require patience, the federal election counting process delivers (1) integrity to the results, concentrating on (2) accuracy in a (3) highly transparent manner.

While manual process ensures these three key priorities, there are two areas of concern to many stake holders, namely:

1.   The time it takes to count votes and the human resources required to complete the process within an acceptable time frame

2.   The volume of papers it requires and the environmental impact of running a manual election.

Let’s suppose you are employed by a software development company that just received a contract from AEC to build a computerised voting system for federal elections. As in the case with manual elections, the most important aspect of this system is to ensure the integrity of the voting system, accuracy, and transparency.

System requirements

The system is developed in several phases. The first phase, which you are responsible for, is limited to federal general elections for House of Representatives. The following voting processes are not in the scope of this phase:

1.    Federal general elections for senate

2.    Federal by-elections

3.    State and territory elections

4.    City council and shire council elections

5.    Referendums

6.    Any other election services provided by AEC

In this assignment, you are required to analyse the database requirements, design the database backend for the voting system, identify various database optimisations, and implement the system.

Elections

In Australia, federal elections are held every three years. In these elections, the voters get an opportunity to vote for both lower house (the house of representatives) and upper house (the senate). There are currently 151 seats in the lower house, and 76 seats in the senate.

As the scope of this assignment is limited to federal general elections for House of Representatives no further details are provided on the upper house (the senate) and how the elections are conducted for   senate seats.

Members of the House of Representatives are elected by the voters registered in each electorate using full preferential voting. Each electorate elects one member.

Electorates

For the House of Representatives, each state and territory is divided into electoral divisions (or commonly known as electorates or seats). Population determines the number of electorates. To ensure  continued equal representation, the boundaries of these electorates have to be redrawn (redistributed) periodically. As of last re-distribution based on 2017 population data, there are 151 electorates in Australia.

Election Process

When the sitting government is nearing its term (3 years) or under circumstances it is dissolved, the    Australian Electoral Commission (AEC) calls for nominations of candidates. Registered political parties will then nominate their candidates for one or more electorates. Most political parties nominate candidates for many electorates. Independent candidates can nominate themselves for the election.

Once the nomination process is over, AEC will determine the election date and will print ballot papers  for each electorate. A sample ballot paper is shown below. A screenshot of a real ballot paper (Higgins electorate in 2016 election) also shown.

On the election date, registered voters are required to attend a polling station and cast their vote on a ballot paper similar to above. The actual voting process is much more flexible with pre-poll voting, postal voting, absentee voting, and declaration votes. However, for the scope of this assignment, we only consider regular voting process on election day.

The preferential voting system

Candidates for the house of representatives are elected using the preferential voting system. In this    system, the voters are required to cast their order of preference to ALL candidates contesting in their electorate. As shown in the above ballot paper, the voter has given first preference to the fifth candidate on the ballot paper. The voter has given their second preference to the first candidate on the ballot paper, and so forth.

At the end of the election day, after all the polling stations are closed, the counting begins. The counting of preferential votes is a complex process.

Step 1: Count of first preferences (primary vote)

In this step, all of the number “1” votes are counted for each candidate. If a candidate gets more than half the total first preference votes, that candidate will be elected.

Step 2: Distribution of preferences

If no candidate has more than half of the votes, the candidate with the fewest votes is excluded. This  candidate’s votes are transferred to the candidates according to the second preferences of the voters on the ballot papers for the excluded candidate. If still no candidate has more than half the votes, the second-last candidate who now has the fewest votes are excluded and the votes are transferred

according to the next preference on the ballot papers. This process is continued until one candidate has more than half the total number of valid votes.

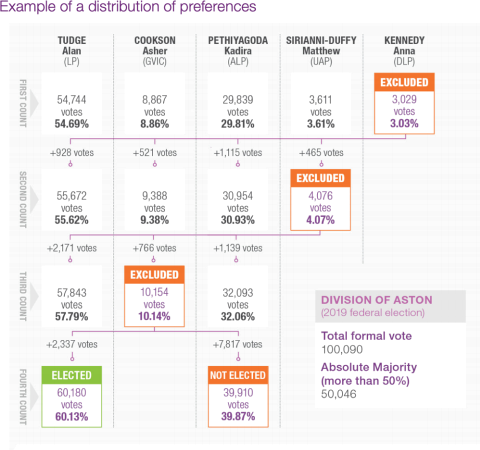

This process is illustrated with a real example (distribution of preferences in Aston electorate in 2019 election) on the page 32 of the following document.

https://www.aec.gov.au/about_aec/Publications/electoral_pocketbook/2019/2019-electoral- pocketbook.pdf

A screen shot of the above-mentioned page:

At the end of this two-stage counting process, the winning candidate is declared as the new Member of Parliament for the corresponding electorate.

Components of the proposed system.

The proposed computerised election system must be able to conduct the entire election process for federal house of representatives elections. The major tasks in the election process are listed below:

1.    Maintenance of electoral role

2.    Maintenance of information required for conduct of an election (such as basic election

information, electorate information, political party information, candidate information, etc. Refer to details below.

3.    Election Day – This process should mimic the manual process where a voter visits a polling

information, once identification is established a ballot paper issued, marks their preferences and lodges the ballot paper.

4.    Counting of ballot papers (counting is a complex process, refer to details below).

This system will maintain the following information.

1. Computerised Electoral Role

The system will maintain a computerised electoral role, i.e. a database of registered voters for each electorate. For each registered voter, following information is stored:

.    Title

.     First name*

.     Middle names (if any)

.     Last name*

.    Gender

.     Date of Birth*

.     Residential Address* (Unit number, street number, street name, suburb, postcode, state)

.     (no letter box addresses accepted)

.     Postal Address (as above, or can be different)

.    Contact Details (daytime phone number, mobile phone number, email address)

.     Electorate (determined by the system based on residential address)

There are around 17,259,000 Australians are currently enrolled to vote

(https://www.aec.gov.au/Enrolling  to  vote/Enrolment_stats/index.htm). The increase of the size of the electoral role is approximately proportional to the population growth in Australia. The current

population growth in Australia is approximately 1.2%.

(https://population.gov.au/sites/population.gov.au/files/2022-04/2022-23_budget_overview.pdf)

2. Details of Elections

The following details about elections are required to be stored in the database.

.     Election Serial Number (a unique code generated and stored by the system)

.     Date of the election

.    Type of election (house of representative, senate, by-election, etc)

.    Total number of electorates

.    Total number of registered voters (the number of registered voters at the closing of the electoral role registrations for the corresponding election)

3. Details of Electorates

The following details about electorates are required to be stored in the database.

.     Electorate Name (refer to page 156 – 158 of

https://www.aec.gov.au/about_aec/Publications/electoral_pocketbook/2019/2019-electoral- pocketbook.pdf) for full list

.     Name of the electorate

.    Total number of currently registered voters

.      Historical record of registered voters (the historical data are captured at closing date of the  electoral role registrations for the past elections. Both the date and no. of voters are stored)

.     Name and party of the current member of parliament

4. Details of Political Parties

The following details about political parties are required to be stored in the database.

.     Party Code (refer to page 160 of

https://www.aec.gov.au/about_aec/Publications/electoral_pocketbook/2019/2019-electoral- pocketbook.pdf)

.     Name of the party

.     Party Logo

.     Postal address of the party headquarters

.    Secretary of the party

.    Contact Person (name and other contact details such as daytime phone number, mobile, and email)

5. Details of Candidates

The following details about political parties are required to be stored in the database.

.     Name

.     Political Party Code (or IND, if they are independent)

.    Contact Details name and other contact details such as daytime phone number, mobile, and email)

.     Election Code

.     Electorate Contesting

6. Computerised Ballot papers cast

The computerised ballot paper captures and stores voters’ preferences (similar to what’s written on a paper-based ballot paper.

[Very important] To ensure integrity and confidentiality of the voting process, once a voter is issued a computerised ballot paper, there should not have any identification records to positively identify who cast that vote. As such, only the following data are stored with each computerised ballot paper.

.     Election Code

.     Electorate

.     Preferences cast (i.e which candidate got the first preference, who got the second preference, etc)

However, there must be a mechanism in place to record the issuance of a ballot paper to a voter. The issuance record must capture the following information:

.     Election code

.     Electorate

.     Polling Station Name

.     Identifying details of the voter – these data should be sufficient to uniquely refer to a voter in the electoral role

.    Timestamp

7. Election results

At the end of counting process, for each electorate, the following result data are stored.

.     Election Code

.     Electorate

.     Primary vote for each candidate (i.e. first preferences)

.     Preferential vote count for each candidate, at the each iteration of elimination process (refer to page 32 of https://www.aec.gov.au/about_aec/Publications/electoral_pocketbook/2019/2019- electoral-pocketbook.pdf)

Assignment Tasks

Milestone 1:

You are required to build the data model for this application using an Entity-Relationship Diagram. This diagram should be developed on Oracle SQL Developer. This diagram should be of professional quality  with sufficient details that any database personnel should be able to comprehend.

Then, convert your data model into the physical database design and finally generate the DDL script to build the back-end database schema for the application. Ensure that primary keys and foreign keys are correctly identified.

In order to complete this milestone, you are required to demonstrate your workings and the final DDL script to your tutor during Week 4 lab sessions. It is very important to get it marked off by the tutor before you proceed to Milestone 2. If your design does not meet the business requirements, your tutor will allow you to make any amendments (only once) and present again for evaluation.

Milestone 2:

TASK 1: Identify the tables, in your final schema, that are expected to be extremely large and are expected to grow over time.

For each of these tables:

.     Describe the expected record size (in bytes or kilobytes), the estimated initial table size, and estimated table size after 10 years of use.

.     Describe a suitable storage strategy for such tables. Your answer must include the modified SQL DDL statements to define your chosen strategy.

TASK 2: Write SQL queries for the following tasks:

1.    Assume that the total number of voters column (in the Electorate table) is empty. This data is to be computed by aggregating data from Voter Registry. Write an SQL query to display the total

number of voters registered in each of the electorate. Your query should produce a report consisting of the electorate name and total number of voters only. The result should be

displayed in the descending order of the total number of voters. A sample result is shown below:

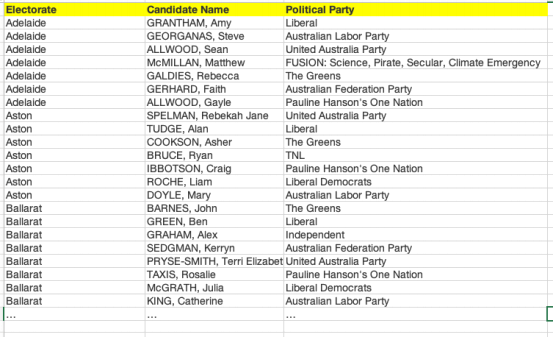

2.    The names of candidates appear on the ballot paper in a totally randomized order, i.e. no

political party or a group gets any advantage of having their candidates on the top of the list, or   candidates with names starting A always appear at the top, etc. Write an SQL query to produce    candidate lists for all electorates for the 2022 federal election (election event id: 20220521). The result set must be sorted by electorate, and then candidates within each electorate must be

randomized. A sample result is shown below:

3.    Registered voters who do not vote at an election receive a penalty (typically, a fine). Write an

SQL query, using IN or NOT IN clause, to generate a report that lists the names and addresses of registered voters who did not vote in 2022 general election (election event id: 20220521) and

also not voted in 2019 general election (election event id: 20190518).

For each of the queries:

.     Produce the SQL query, but do not include the results set.

.     Identify what indexes would help. Identify the type of index and columns that are used to build these indexes (justify your design).

.     Show the SQL commands for building these indexes in Oracle.

.     Show the query execution plans both before the index is added and after adding the index.

.     Explain how the index was utilised (or not) and why. What join algorithms were used? What changes would you need to make for the index to be properly utilised, or for a different join algorithm to be used instead? (Provide concrete details of the changes).

TASK 3: Describe a suitable partition strategy for extremely large tables you identified in step 1. Include details of the partitioning type and which columns/key should be used. You must include the SQL DDL    statements used to implement your partition strategy.

You must justify your design decisions. Include details about which of the above queries it will improve   the performance of and how it helps with concrete examples. (You must explain in clear terms – such as partition pruning, partition joins, and parallel SQL, applicable to each of these queries.)

(Note: While you will be able to test that there are no syntax errors, you may not be able to actually implement them on RMIT’s Oracle servers due to permission restrictions).

TASK 4: Before a voter is allowed to vote, to ensure the integrity of the election system, the system

should check if he/she had voted earlier on this election. Write a stored function –

previouslyVoted(),  to check if the voter had voted before.

This function reads the election code, electorate, voter identification as inputs and returns a Boolean value (true, if voted before and false, if not voted before).

TASK 5: Write a stored procedure – primaryVoteCount(), to complete the step 1 of the counting process. This stored procedure requires election code and electorate name as inputs. It will read

Computerised Ballot Papers and does required processing, and update Election Results table with

primary votes (first preferences) received by each candidate in chosen electorate in the chosen election.

TASK 6: Write a stored procedure – distributePreferences(), to complete the step 2 of the

counting process. This stored procedure requires election code and electorate name as inputs. It will

read Computerised Ballot Papers and does required processing, and update Election Results table with   preference votes received by each candidate at each preference distribution in chosen electorate in the chosen election.

Milestone 3:

You are required to do a demo of your complete application hosted on the school's Oracle server. These demos will be conducted during the week of 4th September (Week 7). You should have some voter data stored in the application and the tutor will test out the functionality by using a test bed of data.

Tutors will use a standard testing plan for all submissions and you will only receive your second   milestone marks if you can demonstrate the functionality of your application in this milestone.

3 Submission

Follow the instructions on Canvas to complete your submission for the project for each Milestone.

3.1 Milestone 1 Submission

You will need to submit:

•    The conceptual model for the database backend, in the form of an entity – relationship diagram using Barker’s notation

•    The physical database design, in the form of a database schema

•    A SQL script to create tables and other related database objects in Oracle

•    A small report outlining any assumptions you made in order to complete your design, steps

taken to optimize your database design, and any design and implementation considerations that must be useful in the next milestone.

3.2 Milestone 2 Submission

Submit your report containing answers to 6 tasks above, including sql code, and any other associated

files in a zip file using the Canvas Assignment page.  It is your responsibility to make sure the submission

is (1) complete; (2) correctly zipped; (3) clearly labelled files. Please verify that your submission is    correctly submitted by downloading what you have submitted to see if the files include the correct contents.

3.3 Milestone 3 Submission

No additional submissions required for this milestone.

3.4 Assessment Declaration

When you submit work electronically, you agree to the RMIT assessment declaration.

3.5 Silence Period

For Milestone 1, there is no silence period.

For Milestones 2 & 3, a silence period will take effect from 5.00pm, Friday 25 August 2023.

This means questions about this assignment will be not answered, whether they are asked on Canvas

Discussion Forum, by email, or in person. The silence period is in place because staff members are

generally unavailable over the weekend. Additionally, to be fair to all students giving presentations, we will not respond to questions about the Milestone 3 presentations during Week 7.

Make sure you ask your questions with plenty of time for them to be answered.

3.6 Late Submissions & Extensions

A penalty of 10% per day is applied to late submissions up to 5 business days, after which you will receive zero marks.

Short extensions may be granted by the course coordinator up to 1 business day before the due date in accordance with RMIT Assessment Adjustment process. However, extensions are not guaranteed and    require suitable documentation. The course coordinator may refer requests to Special Considerations.

Special Consideration may result in an equivalent assessment, which may take the form of a timed

assessment assessing the same knowledge and skills of the assignment and are generally granted on an individual basis. For more information refer to the RMIT Special Consideration process.

3.7 Supported software for assessment and grading

Your assignment solution must be implemented in Oracle and hosted on school’s Oracle server. Markers won’t mark any other variations of implementations.
