Due: After Unit 3

Total: 100 marks

Weight: 15% of your final grade

Answer all questions in this assignment. Submit your completed work to your Academic Expert for marking and feedback using this Assignment Drop Box.

1.   (12 marks) Answer the following questions (250 words max/question).

a.    Define the concept of program-data independence and explain how it is achieved in the database approach. (2 marks)

b.   Briefly compare and contrast the following development approaches: systems development life cycle and prototyping methodology. You may use a table to list their phases, procedures, and

processes, indicating their similarities and differences. (3 marks)

c.    Discuss the differences between entity, instance of an entity, and relationship. (2 marks)

d.   Explain the three-schema architecture used for database development and list the stakeholders for each schema. (3 marks)

e.    Define and contrast the following terms: database, data warehouse, and data lake. (2 marks)

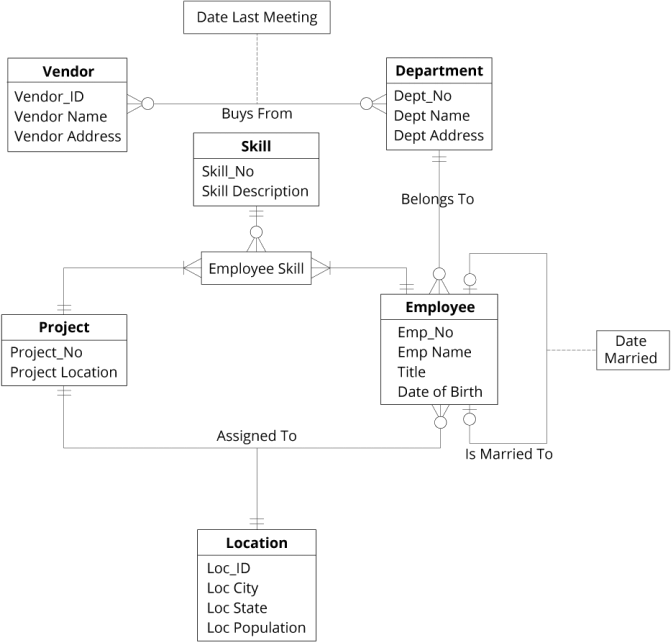

2.   (12 marks) Give a simple example of an E-R diagram for each concept and then write the business rules for each example.

a.    associative entity

b.   weak entity

c.   unary relationship

3.   (17 marks) As an independent consultant, you have a contract with Athabasca University to develop an application to support course administration. Read the detailed description of this application and  then complete the tasks that follow.

o A course has a unique course number and title and is assigned to one or more areas of the

Computer Science program. Each course has an instructor, at least one teaching or research

assistant, an online discussion forum, a delivery period (start date, end date), and a capacity

(maximum number of participants). A course need not be offered each term, but the challenge

option is open throughout the entire year. A course may have prerequisite courses, and a student is not allowed to register for a course if they have not fulfilled the prerequisites or their

equivalent. In addition, a student who would like to challenge a course should have the course prerequisites or authorization from the course instructor.

o An instructor has an employee number, first name, last name, email, phone number, and address and is assigned to several areas of expertise. Note that two different instructors may have the

same (first and last) names. Also, instructors may share the same address (e.g., partners living in the same house). Each instructor may have dependents. Each dependent has a first name, last

name, gender, and date ofbirth.

o A student is given a unique student number. The first name and last name, email, phone number, address, and GPA must be recorded for each student. Identical names and addresses may belong  to different individuals. A student may be enrolled in several courses each term. The grade must  be recorded for each enrollment. There are two types of students: graduate and undergraduate.

Undergraduate students have a study major, while graduate students have both a specialization and a thesis topic.

o A teaching assistant is a graduate student. Their first name, last name, year, and GPA must be

recorded, as well as the number of courses (including the current ones) the teaching assistant has already taught.

o A research assistant is a student (graduate or undergraduate). In addition to the basic information recorded for a student, the number of years of work experience must be recorded. The research    assistant provides laboratory support for students, manages the course discussion forum, and

does some programming tasks.

o An area of study is described by its name. An area may be divided into several sub-areas. These areas are used to categorize instructors as well as courses. For example, the area of game

development consists of sub-areas such as Graphics, Networking, and Human–Computer

Interaction; the area of Data Science consists of Databases, Data Mining, Artificial Intelligence, Machine Learning.

Hint

For each relation without a unique attribute or combination of attributes, introducing an artificial primary key might be a good idea.

a.    Design an EER diagram for this course administration system. Draw the complete EER diagram, including all aspects discussed in the course. Clearly state any further assumptions made, but

keep in mind that you must not override the specifications above. (10 marks)

b.   Identify and list weak entities and associative entities. (4 marks)

c.    For every supertype/subtype relationship, identify the subtype discriminator and list any eventual

disjointness constraint as well as any disjoint rule or overlap rule associated with it. (3 marks)
