Question 1: [8 Marks]

A company operates trains on an 800km stretch of track and wishes to enable digital communication  between  the  train  and  the  stations  at  each  end  of the  track  to communicate with the train drivers and to remotely operate the train, using video streamed from the train in the event of an emergency.

i)          Please list the key QoS requirements for this application and explain why. Please answer in brief bullet points.

ii)        Please  list  the  physical  layer  technologies  that  would  be  suitable  for  this application and explain why. Please answer in brief bullet points.

Question 2: [6 Marks]

100 MB (Megabytes) of data is to be transmitted over 100m of twisted pair with a bandwidth of 10MHz (Megahertz) with data encoded using 4 voltage levels. The speed of the signal over the wire is 200,000 km/s.

i)          What is the Propagation Delay for the transmission?

ii)        What is the Transmission Delay for the transmission?

iii)       If the  data  is  encoded  using  a  Hamming  (7,4)  code  for  forward  error correction, how does this change your answers to i) and ii) above?

Please show all calculations and steps.

Question 3: [6 Marks]

A wireless network has 32 stations.  Stations 2, 4, 16 and 24 have packets to transmit.

i)          List the sequence of events if the Bit Map Protocol is used in brief dot points.

ii)        List the sequence of events if the Binary Countdown Protocol is used in brief dot points.

iii)       Compare the two protocols for efficiency and fairness using brief dot points.

Question 4: [12 Marks]

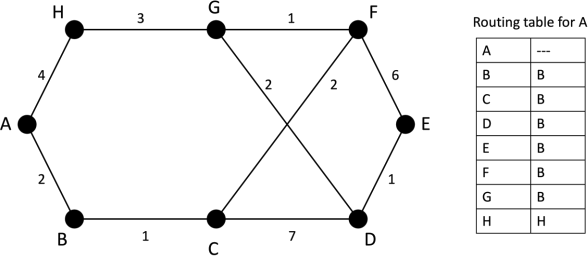

The figure below shows 8 routers in a network.  The delay on each line is shown along with the routing table for node A.

The link between F and G becomes congested and is downgraded from 1 to 3 (packets now take longer to be transmitted over this link).

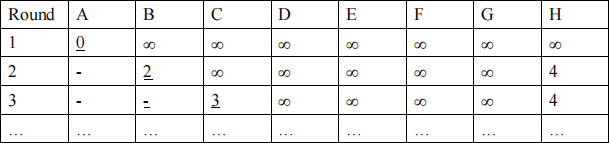

i)         Compute the distances to each node from node A taking this link change into account, using Dijkstra’s algorithm.  Complete the table below (adding rows as necessary) to give your answer:

ii)        Compute the new routing table for A

iii)       If Link State Routing is used, give the Link State Packet(s) that will be generated by the downgrade on the FG link.

iv)       If Distance  Vector  Routing  is  used  instead,  how  many  rounds  of the algorithm are needed for node A to become aware of the downgraded link? Briefly explain your answer.

Question 5: [8 Marks]

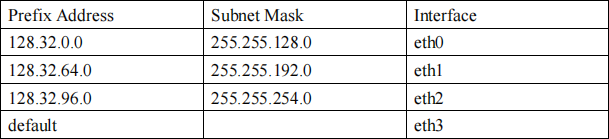

The routing table for a router is shown below:

Packets are addressed to the following destinations.  For each packet determine which interface that the router will send the packet on, give a brief explanation for each

answer.

i)          128.32.192.65

ii)         128.32.4.4

iii)        128.32.80.5

iv)        128.32.97.10

Question 6: [6 Marks]

A server is sending data to a client using TCP. The client has a transport buffer window containing 8000 Bytes.  The server has sent packets 1, 2 and 3 each containing 1000 Bytes of data which have both arrived at the client.  The client application then reads 1000 Bytes of data from the buffer.

1)  What are the ACK and WIN values in the ACK packet that the client sends back to the server after it reads 1000 Bytes from the buffer?

2)  The server then sends packets 4 and 5, but packet 5 arrives first What are the ACK and WIN values in the ACK packet that the client sends back to the server after the arrival of the packet 5?

3)  Packet 4 now arrives. What are the ACK and WIN values in the ACK packet that the client sends back to the server after the arrival of this packet?

Please provide the values of the requested quantities alone. A diagram for these is not required.
