1 Programming Project (PrP) Logistics

Warning: Besides the algorithmic-related programming, for some or all of the options you need to provide command-line processing or file-based input/output. If you are not familiar with those topics and requirements we urge you to become so as soon as possible. Thus start familiarizing with them early in the semester. The more you procrastinate the more problems you will potentially face when you integrate these components with the algorithmic-related material.

STEP-1. Read carefully Handout 2 and follow all the requirements specified there; moreover, observe naming conventions, comments and testing as specified in sections 2-4 of Handout 2.

STEP-2. When the archive per Handout 2 guidelines is ready, upload it to moodle and do not forget to press the submit button; the submission timestamp depends on this (submission button).

You may do one or two options (or none at all). You may utilize the same language or not. We provide descriptions that are to the extent possible language independent: thus a reference in Java is a pointer in C or C++ for example.

OPTION 1 (Hash Table related). Do the programming related to the building of a Hash Table that can  maintain arbitrarily long strings in C, C++, or Java; it is similar to that used by Google around 1997-1998.

OPTION 2. Do the programming part related to Kleinberg’s HITS, and Google’s PageRank algorithms in Java, C, or C++.

Either implementation should be optimized enough for a test execution to take no more than few seconds, maximum 15 seconds forgivingly. (We are a bit more explicit about this in the 8th line or so of OPTION 1.)

2 OPTION 1: Hashing ( 134 points)

We are asking you to implement a Lexicon structure realized by Google in 1997-1998 to store words (aka arbitrarily long strings of characters) in main memory. Lexicon L uses a Hash Table T structure along with an Array A of NULL separated strings . In our case words are going to be English character words only (upper-case or lower case). Table T will be organized as a hash-table using collision-resolution by openaddressing as specified in class. You are going to use quadratic probing for h(k;i) and keep the choice of the quadratic function simple: i2 so that h(k;i) = (h0(k)+ i2) mod m. The keys that you will hash are going to be English words. Thus function h0(k) is also going to be kept simple: the sum of the ASCII/Unicode values of the characters mod m, where m is the slot-size of the hash table. Thus ’alex’ (the string is between the quotation marks) is mapped to 97 + 108 + 101 + 120 mod m whatever m is. In the example below, for m = 11, h(alex;0) = 8. Table T however won’t store key values k in it. This is because the keys are strings of arbitrary length. Instead, T will store pointers/references in the form of an index to another array A. The second table, array A will be a character array and will store the words maintained in T separated by NUL values \0. This is not 2 characters a backslash followed by a zero. It is 1B (ASCII), 2B (UNICODE) whose all bits are set to 0, the NUL value. If you don’t know what B is, it is a byte; never use b for a bit, write instead bit or bits i.e. read Handout 3.

An insertion operation affects T and A. A word w is hashed, an available slot in T is computed and let that slot be t. In T[t] we store an index to table A. This index is the first location that stores the first character of w. The ending location is the \0 following w in A. New words that do not exist (never   inserted, or inserted but subsequently deleted) are appended in A. Thus originally you need to be wise enough in choosing the appropriate size of A. If at some point you run-out of space, you need to increase the size of A accordingly, even if T remains the same. Doubling it, is an option. Likewise the size of T might also have to be increased. This causes more problems that you also need to attend to. deletion will modify T as needed but will not erase w from A. Let it be there. So A might get dirty (i.e. it contains garbage) after several deletions. If several operations later you end up inserting w after deleting it previously, you do it the insertion way and you reinsert w, even if a dirty copy of it might still be around. You DO NOT DO a linear search to find out if it exists arleady in A; it is inefficient. There is not much to say for a search.

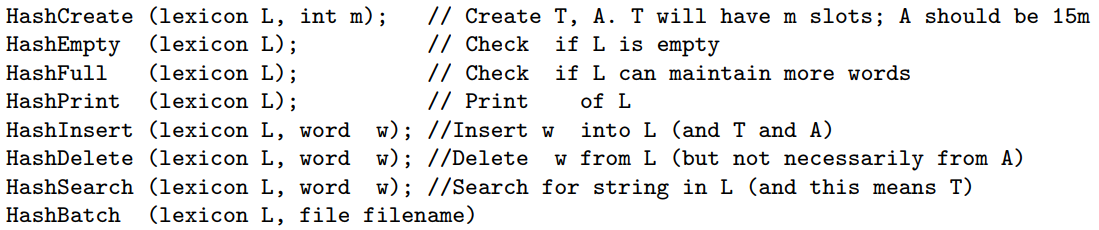

You need to support few more operations: Print , Create, Empty/Full/Batch with the last of those checking for an empty or full table/array and a mechanism to perform multiple operations in batch form. Print prints nicely T and its contents i.e. index values to A. In addition it prints nicely (linear-wise in  one line) the contents of A. (For a \0 you will do the SEMI obvious: print a backslash but not its zero). The intent of Print is to assist the grader. Print however does not print the words of A for deleted words. It prints stars for every character of a deleted word instead. (An alternative is that during deletion each such character has already been turned into a star.) Function Create creates T with m slots, and A with 15m chars and initializes A to spaces. The following is a suggested minimal interface (we try to be language agnostic). We call the class that supports and realizes A and T a lexicon: L is one instance of a lexicon.

The list of functions above is a suggestion of what needs to be implemented: it is too generic and general to be programming language agnostic.

Testing utilizes HashBatch. Its argument filename, an arbitrary filename contains several operations that are executed in batch mode. Operation 10 is Insert, Operation 11 is Deletion, and Operation 12 is Search. Operation 13 is Print, Operation 14 is Create. Operation 15 is Comment; the rest of the line is ignored. (Create accepts as its second parameter and that of HashCreate, an integer value next to its code 14; this becomes m.) The HashBatch accepts an arbitrary filename such as command.txt or file.txt that contains a sequence of operations.

% java mplexicon filearbitrary.txt
% ./mplexicon file.txt
14 11
10 alex
10 tom
10 jerry
15 ready-to-print        CAUTION: 15 is a comment string (chars,numbers,-)
13                                      operation 15 is skipped/ignored

The six-line batch file above will print the following. The T entries for 0, 5, 9 are the indexes (first position) for alex, tom, jerry respectively. Note that the ASCII values for ’alex’ mod 11 give an 8, but for ’tom’ and ’jerry’ give 6, i.e. a collision occurs. A minimal output for Print is available below.

T	A: alex\tom\jerry\
0: 1:	CAUTION: \ means \0 \t is not a tab character !!!

2:
3:
4:
5:
6: 5
7: 9
8: 0
9:
10:
If the following lines were added to the file
12 alex
12 tom
12 jerry
12 mary
11 tom
13
they will generate in addition on screen
alex found at slot 8
tom found at slot 6
jerry found at slot 7
mary not found
tom deleted from slot 6
T A: alex\***\jerry\
0:
1:
2:
3:
4:
5:
6:
7: 9
8: 0
9:
10:
Deliverables. An archive per Handout 2 guidelines.

3 OPTION 2: HITS and PageRank implementations ( 134 points)

Implement Kleinberg’s HITS Algorithm, and Google’s PageRank algorithm in Java, C, or C++ as explained. (A) Implement the HITS algorithm as explained in class/Subject notes adhering to the guidelines of Handout 2. Pay attention to the sequence of update operations and the scaling. For an example of the Subject notes, you have output for various initialization vectors. You need to implement class or function hits (e.g. hitsWXYZ. For an explanation of the arguments see the discussion on PageRank to follow.
% java hits iterations initialvalue filename
% ./hits iterations initialvalue filename

(B) Implement Google’s PageRank algorithm as explained in class/Subject notes adhering also to the guidelines of Handout 2 and this description. The input for this (and the previous) problem would be a file
containing a graph represented through an adjacency list representation. The command-line interface is as follows. First we have the class/binary file (eg pgrk). Next we have an argument that denotes the number of iterations if it is a positive integer or an errorrate for a negative or zero integer value. The next argument initialvalue indicates the common initial values of the vector(s) used. The final argument is a string indicating the filename that stores the input graph.

% ./pgrk % java pgrk

iterations initialvalue filename iterations initialvalue filename

// in fact pgrkWXYZ // in fact pgrkWXYZ

The two algorithms are iterative. In particular, at iteration t all pagerank values are computed using results from iteration t - 1. The initialvalue helps us to set-up the initial values of iteration 0 as needed. Moreover, in PageRank, parameter d would be set to 0.85. The PageRank PR(A) of vertex A depends on the PageRanks of vertices T1;:::;Tm incident to A, i.e. pointing to A; check Subject 7 section 3.6 for more
details. The pageranks at iteration t use the pageranks of iteration t -1 (synchronous update). Thus PR(A) on the left in the PageRank equation is for iteration t, but all PR (Ti) values are from the previous iteration t - 1. Be careful and synchronize! In order to run the ’algorithm’ we either run it for a fixed number of iterations and iterations determines that, or for a fixed errorrate (an alias for iterations); an iterations equal to 0 corresponds to a default errorrate of 10-5. A -1, -2, etc , -6 for iterations becomes an errorrate of 10-1;10-2;:::;10-6 respectively. At iteration t when all authority/hub/PageRank values have been computed (and auth/hub values scaled) we compare for every vertex the current and the previous iteration values. If the difference is less than errorrate for EVERY VERTEX, then and only then can we stop at iteration t.

Argument initialvalue sets the initial vector values. If it is 0 they are initialized to 0, if it is 1 they are initialized to 1. If it is -1 they are initialized to 1=N, where N is the number of web-pages (vertices of the graph). If it is -2 they are initialized to 1=pN. filename first.)

Argument filename describes the input (directed) graph and it has the following form. The first line contains two numbers: the number of vertices followed by the number of edges which is also the number of remaining lines. PAY ATTENTION THAT NUMBER of VERTICES comes first. The sample graph is treacherous: n and m are the same! All vertices are labeled 0;:::;N - 1. Expect N to be less than 1,000,000. In each line an edge (i; j) is represented by i j. Thus our graph has (directed) edges (0;2);(0;3);(1;0);(2;1). Vector values are printed to 7 decimal digits. If the graph has N GREATER than 10, then the values for iterations, initialvalue are automatically set to 0 and -1 respectively. In such a case the hub/authority/pageranks at the stopping iteration (i.e t) are ONLY shown, one per line. The graph below will be referred to as samplegraph.txt
4 4
0 2
0 3
1 0
2 1

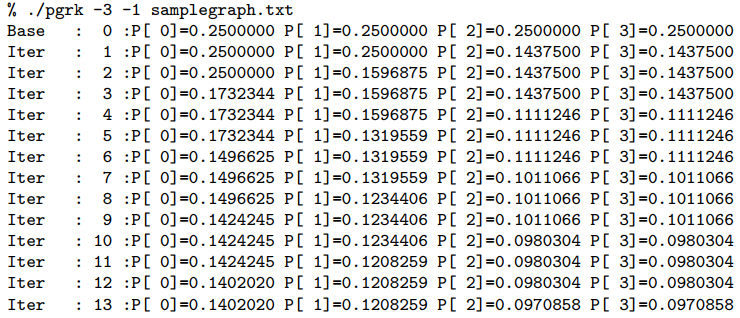

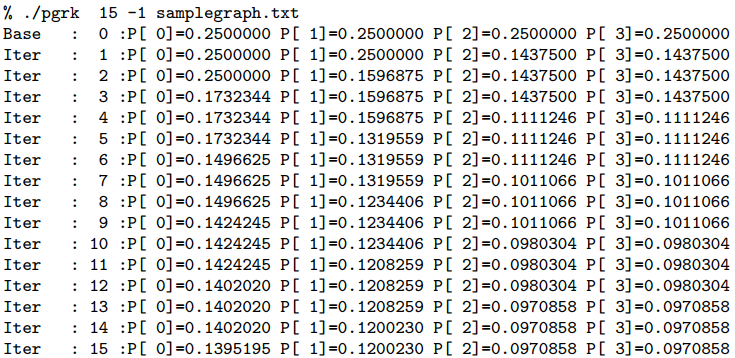

The following invocations relate to samplegraph.txt, with a fixed number of iterations and the fixed error rate that determines how many iterations will run. Your code should compute for this graph the same rank values (intermediate and final). A sample of the output for the case of N > 10 is shown (output truncated to first 4 lines of it).

% ./pgrk 0 -1 verylargegraph.txt
Iter : 4
P[ 0]=0.0136364
P[ 1]=0.0194318
P[ 2]=0.0310227
... other vertices omitted
For the HITS algorithm, you need to print two values not one. Follow the convention of the Subject notes

or for large graphs
Iter : 37
A/H[ 0]=0.0000000/0.0000002
A/H[ 1]=0.0000001/0.0000238
A/H[ 2]=0.0000002/1.0000000
A/H[ 3]=0.0000159/0.0000000
Deliverables. Include source code of all implemented functions or classes in an archive per Handout 2 guidelines. Document bugs; no bug report no partial points.
