Available Sunday, 02/05/2023; Milestone due Sunday, 02/19/2023; Full project due Sunday, 03/12/2023

The purpose of this project is to implement your own peer-to-peer application program in which processes communi- cate using sockets to implement CHECKPOINT, a checkpointing and recovery technique for maintaining a consistent global state in a distributed banking application with failures.

● You may write your code in C/C++, in Python, or in Java; no other programming languages are permitted. Each of these languages has a socket programming library that you must use for communication.

● This project may be completed individually or in a group of size at most two.

● Each group must restrict its use of port numbers to prevent the possibility of application programs from inter- fering with each other. See ?4.3 to determine the port numbers assigned to your group.

● You must use a version control system as you develop your solution to this project, e.g., GitHub or similar. Your code repository must be private to prevent anyone from plagiarizing your work. It is expected that you

will commit changes to your repository on a regular basis.

The rest of this project description is organized as follows. ?1 begins with various definitions of state in a distributed system and provides algorithms to capture a consistent global state. Following an overview of the architecture of the CHECKPOINT application in ?2, the requirements of the peer-to-peer protocol are provided in ?3. Some issues for you to consider in your implementation are found in ?4. The submission requirements for the milestone and full project are described in ?5.

1   Global State in a Distributed System

The computers in a distributed system don’t share memory or a common clock. As a result, an up-to-date state of the entire system is not easily available to any individual process.  Such a global state may be useful for many reasons, such as reasoning about the system’s behaviour, debugging, or recovering from failures. To understand the definition of a global state and what it means for it to be consistent we need to first define a local state [3].

1.1   Local State

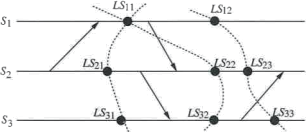

For a site (computer) Si , its local state at a given time is defined by the local context of the distributed application. Let LSi denote the local state of Si at any time. Let send(mij ) denote the send event of a message mij by Si to Sj , and receive(mij ) denote the receive event of message mij by Sj . Let time(x) denote the (local) “time” at which the state or message x was recorded.

For a message mij  sent by Si to Sj :

● send(mij ) e LSi if and only if time(send(mij )) < time(LSi ), according to Si ’s clock.

● receive(mij ) e LSj if and only if time(receive(mij )) < time(LSj ), according to Sj ’s clock.

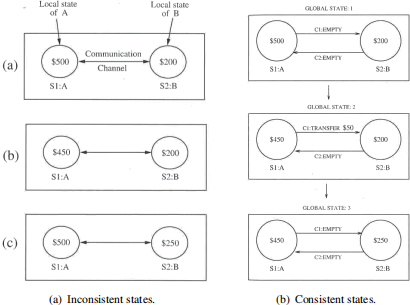

For local states LSi  and LSj  of any two sites Si  and Sj , two sets of messages are defined.  These sets contain messages sent from computer Si to computer Sj .

● Messages in transit: transit(LSi , LSj ) = {mij Isend(mij ) e LSi A receive(mij ) e\ LSj }.

● Inconsistent messages: inconsistent(LSi , LSj ) = {mij Isend(mij ) e\ LSi A receive(mij ) e LSj }.

Similarly, we can show that a consistent global state requires m = m\ where m\ is the number of messages received along the channel before account B ’s state is recorded and m is the number of messages received along the channel by B before the channel’s state is recorded. Since in no system the number of messages sent along the channel can be less than the number of messages received along that channel we have n\  > m. From the two requirements n = n\ and n\  > m we get that a consistent global state must satisfy n > m. In other words, the state of a communication channel in a consistent global state is the sequence of messages sent along that channel before the sender’s state is recorded, excluding the sequence of messages received along that channel before the receiver’s state is recorded.

1.4   Checkpointing and Recovery in Concurrent Systems

We now present an algorithm for taking a consistent set of checkpoints (local states), and a rollback recovery algorithm that avoids livelock during recovery from failure [1].

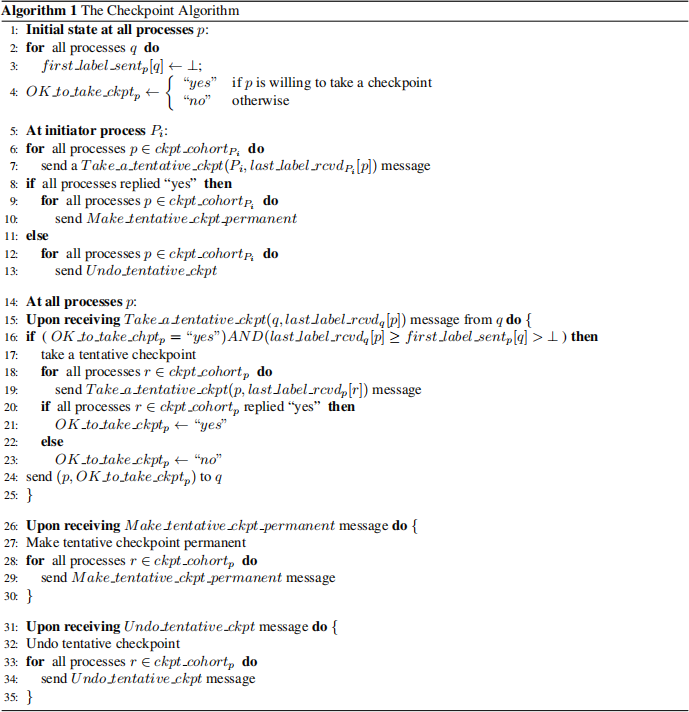

1.4.1   The Checkpoint Algorithm

The checkpoint algorithm takes two kinds of checkpoints on stable storage, permanent and tentative.  A permanent checkpoint is a local checkpoint at a process and is a part of a consistent global checkpoint. A tentative checkpoint is a temporary checkpoint that is made permanent on the successful termination of the checkpoint algorithm. Processes roll back only to their permanent checkpoint.

The checkpoint algorithm assumes that a single process invokes the algorithm. The algorithm has two phases:

Phase 1: An initiating process Pi takes a tentative checkpoint and requests all processes to take tentative checkpoints. Each process informs Pi whether it succeeded in taking a tentative checkpoint. A process says “no” to a request if it fails to take a checkpoint.  If Pi  learns that all processes have successfully taken a tentative checkpoint, Pi  decides that all tentative checkpoints should be made permanent; otherwise, Pi  decides that all tentative checkpoints should be discarded.

Phase 2: Pi  informs all the processes of the decision it has reached at the end of the first phase.  A process, on receiving the message from Pi , will act accordingly. Therefore either all or none of the processes take permanent checkpoints.

The algorithm requires that every process, once it takes a tentative checkpoint not send messages related to the underlying computation until it is informed of Pi ’s decision.

Messages sent by the checkpointing (or rollback recovery) algorithm are control messages. Messages sent as part of the underlying computation are application messages. Every outgoing application message m has a field for a label, denoted m.é . Each process uses monotonically increasing labels in its outgoing application messages. Let 1 denote the smallest label and 」the largest label.

For any two processes X and Y, let m be the last application message that X received from Y after X has taken its last permanent or tentative checkpoint. Then

Let m be the first application message X sent to Y after X took its last permanent or tentative checkpoint. Then

Whenever X requests Y to take a tentative checkpoint, X sends last label rcvdX [Y] along with its request; Y takes a tentative checkpoint only if

This condition tells Y that the checkpoint at X has recorded the receipt of one or more application messages sent by Y after Y took its last checkpoint. Therefore Y should take a checkpoint to record those application messages.

Finally, we define ckpt cohortX  = {Y I label label rcvdX [Y] > 1}. This set indicates all the processes from which X has received application messages after it has taken its last checkpoint. If X takes a checkpoint, then those processes should also take a checkpoint to record the sending of those application messages.  Pseudocode for the checkpointing algorithm is given in Algorithm 1.

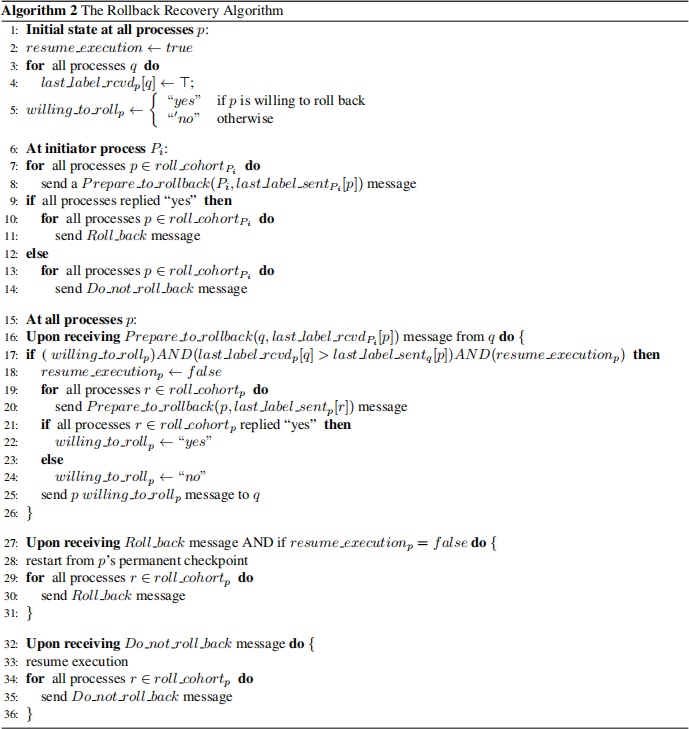

1.4.2   The Rollback Recovery Algorithm

The rollback recovery algorithm assumes that a single process invokes the algorithm, and that the checkpoint and the rollback recovery algorithms are not invoked concurrently. The rollback recovery algorithm also has two phases.

Phase 1: An initiating process Pi  checks to see if all the processes are willing to restart from their previous check- points.  A process may reply “no” to a restart request if it is already participating in a checkpointing or a recovering process initiated by some other process. If Pi learns that all the processes are willing to restart from their previous checkpoint, Pi decides that all the processes should restart; otherwise Pi decides that all processes should continue with their normal activities. (Pi may attempt a recovery at a later time.)

Phase 2: Pi propagates its decision to all the processes. On receiving Pi ’s decision, a process will act accordingly.

The recovery algorithm requires that every process not send messages related to the underlying computation while it is waiting for Pi ’s decision.

To minimize the number of process rollbacks, the rollback recovery algorithm uses the labelling scheme described in ?1.4. 1.  For any two processes X and Y, let m be the last message that X sent to y before X takes its latest permanent checkpoint. Then

When X requests Y to restart from the permanent checkpoint, it sends last label sentX [Y] along with its request. Y will restart from its permanent checkpoint only if

When this condition holds, it indicates that X is rolling back to a state where the sending of one or more messages from X to Y is being undone. We also define roll cohortX  = {Y I Xcan send messages to Y }. Pseudocode for the rollback recovery algorithm is given in Algorithm 2.

operation.  To make things interesting, the loss of some transfer messages is simulated.  Lost transfers lead to in- consistencies in the amount of money in the bank, hence the system needs to recover by rolling back to a consistent checkpoint of the cohort.

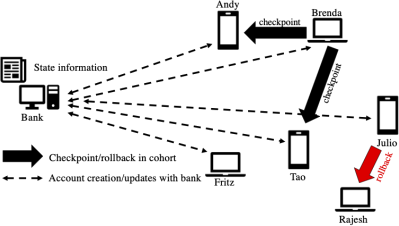

Figure 3 shows a scenario in which six customers have opened accounts with the bank. In this scenario, Brenda, Andy, and Tao are a cohort and Brenda is initiating a checkpoint.  Julio and Rajesh are also a cohort and Julio is initiating a rollback to a consistent checkpoint made earlier. For simplicity the intersection of customers in cohorts is empty.

3   Requirements of the CHECKPOINT Socket Programming Project

The design and implementation of the CHECKPOINT application involves writing two programs:

1.  One program, the bank, maintains state information about the customers using CHECKPOINT .  The bank must be able to process messages issued from a customer via a text-based user interface.  (No fancy UI is required!) Your bank should read one command line parameter specifying the port number (from your range of port numbers) at which it listens for commands. The messages supported by the bank are described in ?3.1.

2. The second program, the customer:

(a) interacts with the bank as a client,

(b) interacts with itself performing typical banking functions, and

(c) interacts with other customer processes as peers in CHECKPOINT . Your process should read at least two command line parameters, the first is the IPv4 address in dotted decimal notation of the end-host on which the bank process the running, and the second is the port number at which the bank is listening. The port number should match the port number parameter of the bank process. The messages to be supported by a customer interacting with the bank as a client are described in ?3. 1. The messages to be supported by a customer (peer) interacting with itself, and with a cohort as peers are described in ?3.2.

Depending on your design decisions (see ?4), you may add additional command line parameters to your programs.

3.1   CHECKPOINT: The Bank

Recall that a protocol defines the format and the order of messages exchanged between two or more communicating entities, as well as the actions taken on the transmission and/or receipt of a message or other event [2].

Every peer-to-peer application requires an always-on process located at a fixed IP address and port to manage the application.  In this project, the bank is always-on.  It maintains a “database” of customers currently running the CHECKPOINT application, and maintains records of the cohorts taking checkpoints, among other information. A single bank process must be started before any customer processes are run.  The bank runs in an infinite loop, repeatedly listening for a message on the port bound to the UDP socket sent to it from a customer, processes the message, and responds back to the customer following the protocol.

To be interesting, at least two customer processes must be started.  Each one reads commands from stdin (again, no fancy UI is expected) until it exits the application. After creating an account with the bank, the customer may choose to perform typical banking functions. You must output a well-labelled trace the messages transmitted and received between the customer and bank, and among customers in a cohort, so that the sequence messages sent and received by your CHECKPOINT application, and the events in a checkpoint are clear.

In the following, angle brackets () delimit parameters to the command, while the other strings are literals.  The bank must support messages corresponding to the following commands from a customer:

1.  open  (customer)  (balance)  (IPv4-address)  (portb )  (portp ), to open an account for the named customer with the given balance with the bank. The customer is an alphabetic string of length at most

15 characters giving the customer’s name. The IPv4-address is the IPv4 address in dotted decimal notation of the end-host running the customer process. This address need not be unique because one or more customer processes may run on the same end-host. portb is the port number customer uses for communication with the bank while portp is the port number used for communication with other bank customers. The port numbers must come from the set assigned to your group; see ?4.3 to find this information.

Each customer may only have one account. This command returns a return code of SUCCESS if the customer is not a duplicate among all those with accounts. In this case, the bank stores a tuple consisting of the customer’s name, balance, its IPv4 address and port(s) in a “database.” You may implement the “database” however you see fit.

Otherwise, the bank takes no action and returns a return code of FAILURE to the customer indicating failure to open an account due to a duplicate customer name, or any other problem.

2.  new-cohort  (customer)  (n), to obtain a cohort of (integer) n > 2 customers, including the customer. If there are insufficient customers of the bank for a cohort of the given size n, or any other reason the cohort cannot be formed, then the bank returns a return code of FAILURE to the customer.

Otherwise, the bank chooses nx1 customers at random, which together with the customer issuing the request, form a cohort C, ICI = n. The bank records the cohort in its database. Cohorts are a subset of bank customers and, for simplicity, have an empty intersection.  If you multi-thread your bank process ensure your choice of customers occurs in a critical section.

The bank forms a returns a list of n tuples, with one tuple for each customer c e C, as given in rows 1 through n of table below. A tuple for the customer forming the cohort is given in row one of the table. The fields of the tuple are the customer’s name, IPv4 address, and port number(s) registered with the customer process.

The list of n tuples of cohort information is returned to the customer along with a return code to SUCCESS.

3.  delete-cohort  (customer), to delete the cohort containing the named customer. The bank sends a message to each member of the cohort containing the customer. This causes each customer in the cohort to delete checkpoints associated with the cohort and to drop any incoming messages from the cohort. Finally, the bank deletes the cohort from its database. This command returns a return code of SUCCESS to the initiating the customer if the cohort deletion is successful, and FAILURE otherwise. If the deletion of the cohort is successful, the customers are now free to join new cohorts, or exit the system.

4.  exit  (customer), to delete the account information associated with the customer at the bank.  This command returns a return code of SUCCESS if the customer account is deleted successfully, and FAILURE otherwise; the customer process then terminates. The bank deletes the customer’s account information.

You may consider providing a mechanism to save the state of the bank in a file to facilitate testing and debugging of your application. For example, you may add another command line parameter to your bank that reads the state from the named file. This may allow you to bring up your system more quickly.

3.2   CHECKPOINT: The Customers

After creation of a customer process in the CHECKPOINT application, it first opens an account at the bank; i.e., issue the open command at each customer with each customer initializing its state to its balance.

Choose one customer process c to issue a new-cohort command.  Using the list of cohorts C, this process c initializes the cohort. This involves:

1.  c sends each member p of the cohort C / c the list of cohort information which p records.

2. Each member p e C initializes its account balance.

3. Each member p e C of the cohort runs the initialization of the Checkpoint Algorithm (lines 1–4 of Algorithm 1).

4. Each member p  e C of the cohort runs the initialization of the Rollback Recovery Algorithm (lines 1–5 of Algorithm 2),

3.2.1   Customer Operations

Once the cohort has been initialized, the processes in the cohort may issue any sequence of bank operations (events) until it decides to exit the application. These are:

1.  deposit  (amount), issued by customer p  e C increments the balance of customer p by amount.  This deposit event is performed locally, i.e., does not involve any message exchange between processes, but is recorded in the state of customer p.

2.  withdrawal  (amount), issued by customer p e C decrements the balance of customer p by amount. This withdrawal event is performed locally, i.e., does not involve any message exchange between processes, but is recorded in the state of customer p.

3.  transfer  (amount)  (q)  (label), issued by customer p e C successfully transfers amount from cus- tomer p to customer q e C / p. This operation involves several steps:

(a) p’s balance is decremented by amount.

(b) Increment the label é associated with its outgoing messages to customer q in the cohort.

(c)  Send a transfer message containing the amount being transferred with label é to process q.

(d) Record the transfer operation in the state of p.  As described in ?1.3, this involves recording the decre- mented balance at p by amount and also the state of the channel from p to q, Cpq with the amount.

(e)  On receipt of the transfer message by q it records its state. This involves recording the incremented balance at q by amount and also the state of the channel from p to q, Cpq as empty.

4.  lost-transfer  (amount)  (q), a transfer from customer p e C to customer q e C / p is simulated as lost. This operation involves several steps:

(a) p’s balance is decremented by amount.

(b) Increment the label é associated with its outgoing messages to customer q in the cohort.

(c) The transfer message is only recorded but not sent to q. That is, decremented balance at p by amount and also the state of the channel from p to q, Cpq with the amount are both recorded.

Another transfer from p to q will not have the expected label. This is an example of an inconsistency in the state of the banking application. Such a message provides another condition for q to rollback.

5.  checkpoint, issued by customer c runs the Checkpoint Algorithm starting at line 5 of Algorithm 1) with ckpt cohortc  = {pIlabel label rcvdc [p] > T}, to take a new permanent checkpoint of the processes in the cohort.

The checkpointing algorithm should not allow the checkpoint of a lost-transfer.  It should revert to an earlier checkpoint.

6.  rollback, issued by customer c runs the Rollback Recovery Algorithm starting at line ?? of Algorithm 2) with roll cohortc  = C / c, to rollback the execution of the processes in the cohort to a consistent state.

Note that this operation rolls back to a consistent global state; Any operations that are recorded in the local state are no replayed; they are simply discarded.

Design the protocol to implement the pseudocode of the checkpointing and rollback recovery (Algorithms 1 and 2).

4 Implementation Design Decisions

4.1 Number of Ports to Register and Threading

A customer process communicates with the bank as a client, and as a peer with other processes in its cohort in CHECKPOINT . You should set up a separate socket for each such communication.

You may consider using a different thread for handling each socket.  Alternatively a single thread may loop, checking each socket one at a time to see if a message has arrived for the process to handle. If you use a single thread, you must be aware that by default the function recvfrom() is blocking.  This means that when a process issues a recvfrom() that cannot be completed immediately (because there is no message to read), the process is put to sleep waiting for a message to arrive at the socket. Therefore, a call to recvfrom() will return immediately only if a packet is available on the socket. This may not be the behaviour you want.

You can change recvfrom() to be non-blocking, i.e., it will return immediately even if there is no message. This can be done by setting the flags argument of recvfrom() or by using the function fcntl(). See the man pages for recvfrom() and fcntl() in C/C++ for details; be sure to pay attention to the return codes.

4.2 Defining Message Exchanges and Message Format

As part of this project, you must to define the protocol for CHECKPOINT .  This includes defining the format of all messages used between a bank and the customer, and among peers. This may be achieved by defining a structure with all the fields required by the commands.  For example, you could define the command as an integer field and interpret it accordingly. Alternatively, you may prefer to define the command as a string, delimiting the fields using a special character, that you then parse. Indeed, any format is fine so long as you are able to extract the fields from a message and interpret them.

It may also useful to define meaningful return codes to differentiate more specific SUCCESS and FAILURE states, among other return codes that you may introduce.

4.3 Port Numbers

Both TCP and UDP use 16-bit integer port numbers to differentiate between processes.  Both also define a group of well-known ports to identify well-known services. For example, every TCP/IP implementation that supports FTP assigns well-known port of 21 (decimal) to the FTP server.

Clients of these services on the other hand, use ephemeral, or short-lived, ports. These port numbers are normally assigned to the client. Clients normally do not care about the value of the ephemeral port; the client just needs to be certain that the ephemeral port is unique on the client host.

RFC 1700 contains the list of port number assignments from the Internet Assigned Numbers Authority (IANA). The port numbers are divided into three ranges:

. Well-known ports: 0 through 1023. These port numbers are controlled and assigned by IANA. When possible,

the same port is assigned to a given server for both TCP and UDP. For example, port 80 is assigned for a Web server for both protocols, though all implementations currently use only TCP.

. Registered ports: 1024 through 49151.  The upper limit of 49151 for these ports is new; RFC 1700 lists the upper range as 65535. These port numbers are not controlled by the IANA. As with well-known ports, the same port is assigned to a given service for both TCP and UDP.

(a) Include a description of your message format for each command implemented for the milestone.

(b) Include a time-space diagram for each command implemented to illustrate the order of messages ex- changed between communicating entities, as well as the actions taken on the transmission and/or receipt of a message or other event. These diagrams must drawn using a software tool for readability.

(c) Describe your choice of data structures and algorithms used, implementation considerations, and other design decisions.

(d) Include a screen shot showing commits made in your choice of version control system.

(e) Provide a a link to your video demo and ensure that the link is accessible to our graders.   In addition, provide a list of timestamps in your video at which each step 3(a)-3(g) is demonstrated.

2.  Code and documentation (25%). Submit well-documented source code implementing the milestone of your CHECKPOINT application.

3. Video demo (25%). Upload a video of length at most 5 minutes to YouTube with no splicing or edits before the milestone submission deadline. You must provide audio accompaniment to explain your demo.

The video demo of your CHECKPOINT application for the milestone must include:

(a) Compile your bank and customer programs (if applicable).

(b) Run the freshly compiled programs on at least two (2) distinct end-hosts.

(c) First, start your bank program.  Then start three (3) customer processes that each open an account with the bank.

(d) Have one customer issue a new-cohort command with n = 3. (e) Have a different issue the delete-cohort command.

(f) Have each of the customers exit.

(g) Terminate the bank process.

Your video will require at least four (4) windows open: one for the bank, and one for each customer. Ensure that the font size in each window is large enough to read!

In addition to your audio accompaniment, you must output a well-labelled trace the messages transmitted and received between b己h对 and ·ust。*4十 processes, as well as other explanatory output, so that the sequence messages sent and received by your CHECKPOINT application is clear.

5.2   Submission Requirements for the Full Project

For the full project deadline, you are to implement the all commands to the tracker listed in ?3. 1. This also involves the design of the protocols between customer processes, as described in ?3.2.

Submit electronically before 11:59pm of Sunday, 03/12/2023 a zip file named GroupX . zip where X is your group number. Do not use any other archiving program except zip.

Your zip file must contain:

1. Design document in PDF format (30%).

Extend the design document for the milestone phase of design of your CHECKPOINT application program to include details for the remaining commands implemented for the full project. Provide in this order”

(a) Include a description of your message format for each command designed for user process.

(b) Include a time-space diagram for each command implemented, explaining your design of the checkpoint- ing and rollback recovery algorithms, illustrating the order of messages exchanged between communicat- ing entities, as well as the actions taken on the transmission and/or receipt of a message or other event.

(c) Describe your choice of data structures and algorithms used, implementation considerations, and other design decisions.

(d) Include a screen shot showing commits made in your choice of version control system.
